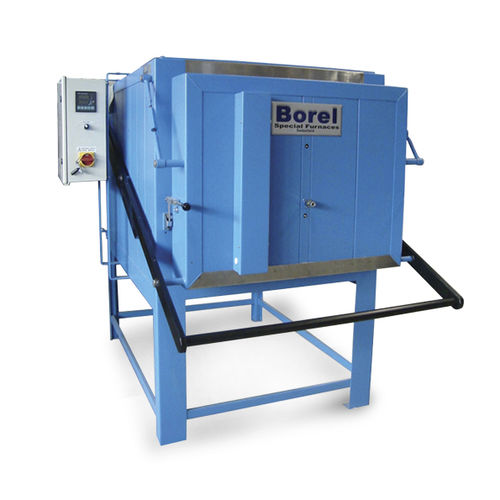

Heat treatment furnace FI 1250
chamberelectric resistance

heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
Add to favorites
Compare this product

Characteristics

Function
heat treatment
Configuration
chamber
Heat source
electric resistance
Capacity

Min.: 52.5 l (13.9 gal)

Max.: 640 l (169.1 gal)

Maximum temperature

1,250 °C (2,282 °F)

Description

Definition: Electric chamber furnace for all applications. Construction: Manually operated vertically-opening door, counterweighted for easy opening, avoids direct contact to the hot surface of the furnace. Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks. Heating: Electrical coil resistors. Resistors mounted on ceramic tubes and/or in grooves depending on the models. The heating is turned off at the opening of the door. Electricity: 3 x 400 VAC. Regulation: Axron Swiss temperature controller/programmer, 30 programs segments with delayed start time setting function. Documentation: CE marking and operating instructions in English. Delivered with: Removable ceramic sole. Option: without counterweighted.
