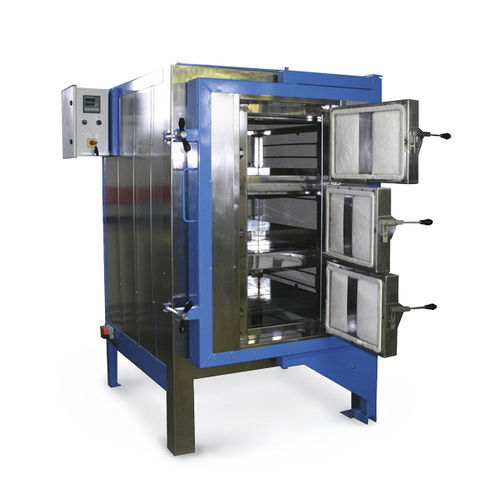

Chamber furnace FI 550
electric resistanceindustrialhigh-volume

chamber furnace
chamber furnace
chamber furnace
chamber furnace
chamber furnace
Add to favorites
Compare this product


Characteristics

Configuration
chamber
Heat source
electric resistance
Other characteristics
industrial, high-volume, for the ceramics industry, for glass working
Maximum temperature

550 °C
(1,022 °F)

Capacity

Min.: 570 l
(150.58 gal)

Max.: 3,700 l
(977.44 gal)

Description

Definition: Electric chamber furnace for all applications. Construction: Main door includes 3 small doors with access to the removable modular shelves. Insulation: Multilayer insulation. Interior in ceramic fibre and refractory bricks. Aeration: Air intake and exhaust controlled by temperature controller. Heating: Shielded electrical resistors on 4 surfaces. The heating is turned off at the opening of the door. Electricity: 3 x 400 VAC. Regulation: Axron Swiss temperature controller/programmer, 30 programs of 15 segments with delayed start time setting function. Documentation: CE marking and operating instructions in English. Delivered with: 3 removable shelves. Version: Model 2400 liters and above equipped with double doors.
