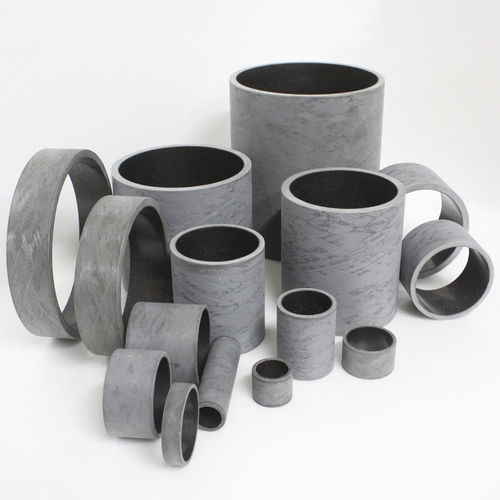

Cylindrical plain bearing Mostuf NW
fiberglassPTFEsynthetic fiber

cylindrical plain bearing
cylindrical plain bearing
cylindrical plain bearing
cylindrical plain bearing
cylindrical plain bearing
cylindrical plain bearing
Add to favorites
Compare this product


fiberglass, PTFE, synthetic fiber, epoxy resin
Other characteristics
corrosion-resistant, self-lubricating, maintenance-free, wear-resistant, high-performance, chemical-resistant, dry, lubricated, lead-free, antifriction, double-layer, filament-wound
for the food industry, for high-frequency oscillating movements

Max.: 7 in

Min.: 0.5 in

Inside diameter

Max.: 150.3 mm (5.92 in)

Min.: 20.04 mm (0.79 in)


Material structure MOSTUF NW bearing has a twin layer structure. The inner layer is composed of special woven synthetic fiber and PTFE. The outer layer has high strength continuous glass fibers which are impregnated with epoxy resin in special filament winding at specific angles to provide strength. ■ Features ■ No need for lubrication ■ Maintenance-free in dry operation ■ Self-lubricating design ■ Low coefficient of friction and wear-resistant ■ High load-carrying capacity ■ High PV capacity ■ Negligible stick-slip ■ Corrosion-resistant ■ Non-metallic material ■ Friction and Wear characteristics Friction and wear characteristics of the bearing is subjected to the influences of various factors such as - Specific load, PV factor, shaft material, surface roughness of shaft, temperature, other environmental factors(e.g. dust, lubrication) Filament winding bushing, Composite bearing, filament winding bushing, Glass fiber


Mostuf NW
Mostuf NW
