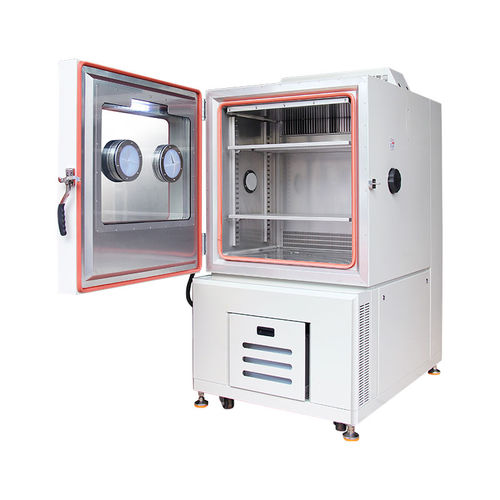

Climate chamber ST/340/70(H)
temperaturehumidityfor altitude flight simulation

climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
climate chamber
Add to favorites
Compare this product

Go to the SONACME Technology website for more information

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
for altitude flight simulation, for driving simulation, aging
Application domain
for the aeronautical industry, for the pharmaceutical industry, for small parts production, international standards-compliant, European standards-compliant, for quality control
Product applications
thermoplastic pipe, for electronic circuit boards, for sensors, for composite materials, for semiconductors, for electrical equipment, for aircraft, for automobiles, for motors, for engine, for vehicles, for windows, glass, for materials testing machines, for auto lamp, device, for wires, for test benches
Configuration
compact, floor-standing, on casters, horizontal, vertical
Light source
white LED
Options and accessories
with temperature and climatic control, with window, with constant temperature and humidity control, with cyclical temperature/humidity control, with sample preparation
Other characteristics
high-capacity, low-temperature, stainless steel, for high temperatures
Capacity

340 l
(90 gal)

Temperature

Max.: 180 °C
(356 °F)

Min.: -70 °C
(-94 °F)

Length

950 mm
(37.4 in)

Width

1,800 mm
(70.9 in)

Depth

1,885 mm
(74 in)

Power

600 W

Description

Application Area 1. Seasonal differences, different climate zones-your products must be able to withstand various temperatures during manufacturing, transportation, storage and use. The Temperature Humidity Chambers of Sonacme Technology will help you to test the effects of temperature and humidity on the characteristics, functions and service life of your products under accelerated conditions. 2. The Sonacme environmental test chamber and constant temperature and humidity test chamber with a wide range of applications allow you to control the temperature and humidity in the test chamber, ranging from -70°C to +180°C (temperature) and from 20% to 98% (relative humidity). Structural Features 1. The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked. 2. The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched. 3. The insulation material is made of polyurethane foam with thicknessof 100mm. 4. The door seal adopts double silicon rubber sealing material. 5. The observation window is 4 layers of tempered glass, the size you can choose by yourself. 6. In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
