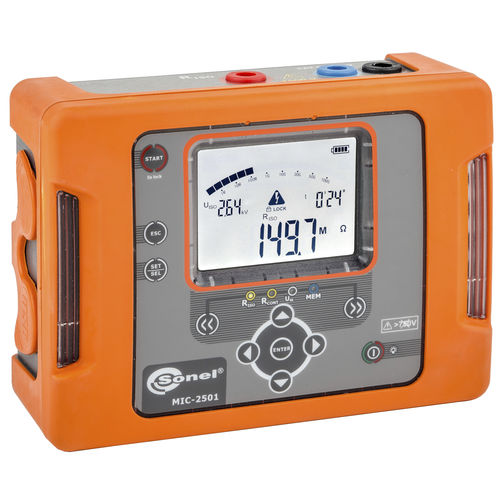

Insulation tester MIC-2501
insulation resistanceelectricdielectric

insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
Add to favorites
Compare this product


Characteristics

Test type
insulation, insulation resistance, electric, dielectric, electrical safety
Tested product
for electrical installations, cable, installation, motor
Applications
industrial, diagnostic, for power systems
Configuration
portable
Other characteristics
digital, USB, with LCD screen, rugged, with memory

Description

selectable measurement voltage in the 100…2500 V range with 100 V step, continuous indication of insulation resistance or leakage current, automatic discharge of capacitance of tested object after the insulation resistance measurement, acoustic signalling of five-second periods to facilitate obtaining time characteristics, measured test times T1, T2 i T3 to measure one or two absorption coefficients in 15, 60 and 600 s, indication of actual test voltage during the measurement, protection against measuring live objects, two and three-lead measurement method, Continuity measurement of protective and equipotential conductors according to EN 61557-4 with the >200 mA current. Leakage current measurement. Measurement of alternating and direct voltages in the 0...750 V range. Built-in rechargeable battery pack. The instruments meet the requirements of the EN 61557 standard. The ability to charge from car lighter (12 V) socket (additional accessories).
