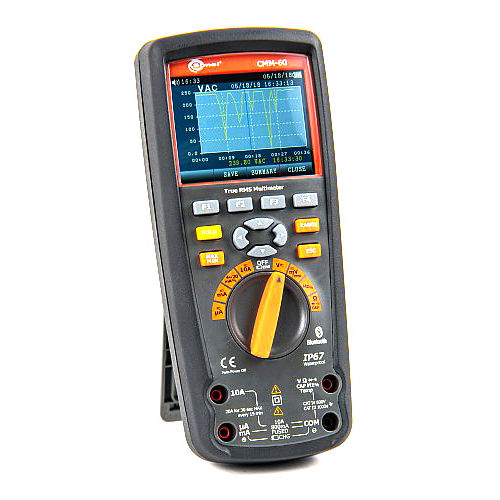

Digital multimeter CMM-60portable1000 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer, with data logger, with signature analysis
- Protection level
- rugged
- Applications
- industrial, service, for cables
- Other characteristics
- AC/DC, true RMS, autorange, low-impedance, Bluetooth, with PC interface
- Max DC voltage
Max.: 1,000 V
Min.: 0 V
- Max AC voltage
Max.: 1,000,000 mV
Min.: 0 mV
- Max DC current
Max.: 10 A
- Max AC current
Max.: 10 A
- Max resistance measure
Max.: 50,000,000 Ohm
Min.: 0 Ohm
- Max capacity measure
Max.: 10,000,000 nF
Min.: 0 nF
- Max frequency measure
Max.: 10,000,000 Hz
Min.: 0 Hz
- Max DC voltage resolution
0 mV
- Max AC voltage resolution
0 mV
- Max DC current resolution
0 mA
- DC voltage precision
0.03 %
- AC voltage precision
0.3 %
- DC current precision
0.1 %
- AC current precision
0.6 %
- Resistance precision
0.05 %
- Process temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Length
58 mm
(2.28 in)- Width
97 mm
(3.82 in)- Height
220 mm
(8.66 in)- Weight
342 g
(12.06 oz)
Description
The CMM-60 multimeter allows you to record data thanks to the Trend Capture function of the built-in memory as well as the possibility of transferring data and analysing the results achieved in the CMM-60 Multimeter Software. The device facilitates the diagnostics of potential problems covering the operation of electromechanical devices, industrial automation, motors and distribution of electricity. Precise indications, safety during work in industrial conditions, convenience of use and early detection of irregularities in the operation of machines and devices are the main benefits of having this device in your equipment.
