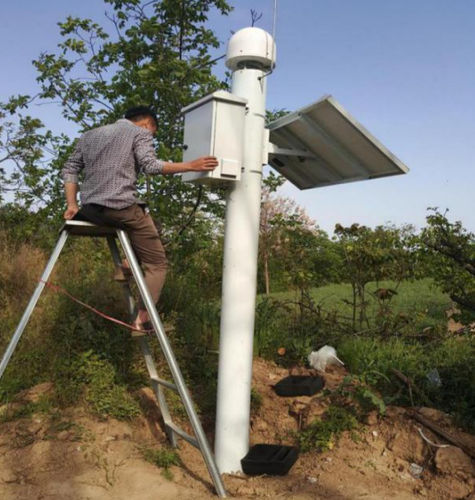

Vibration monitoring system SMOS

displacementprocessmeasurement

SMOS is SOUTH professional deformation monitoring system, it is based on the monitoring sensors, data transmission link and the data monitoring process and analysis center. The SMOS is compatible with multiple monitoring sensors like GNSS, strain stress sensor, reinforced cable monitor, vibration monitor and environment monitor etc. Various solution for different projects requirement. Considering the different monitoring project application environment, SMOS supports different links for data transmission—the wired and wireless. The wired transmission could be RS232, RS485 or Ethernet. The monitoring center is the core software of SMOS, it consist of manage server, database and printer. SMOS uses rigorous data screening and processing algorithms to ensure the high-precision data from the connected sensors as much as possible. All measurement data and result data are stored in the database. Whether using SMOS or third-party software, these data can be safely accessed locally or remotely for analysis. The system supports a wide range of sensors, and the software is also designed to easily add additional sensors. Combined use of a series of measurements and data collected by geodetic sensors. The powerful event management system can send relevant information through E-mail, SMS or data interface according to pre-defined rules (such as the measured displacement value exceeds the limit difference, power failure, etc.). During the measurement process, external devices and programs can be controlled by pre-specified events. The SMOS analyzer can present data graphically and digitally.
