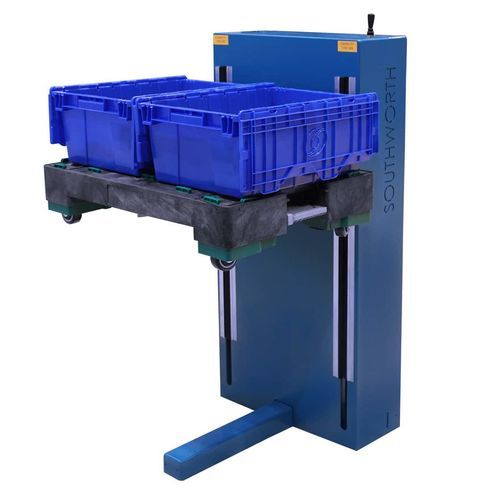

Column type lift table SBL-1000

electricfoot-operatedmobile

Product Overview
Southworth Stackbox Positioners are engineered to improve material handling efficiency for small containers such as totes and junior containers. Operating on a vertical mast rather than a scissor mechanism, these positioners deliver precise elevation while minimizing floor footprint. They are suited to feeding, offloading and ergonomic staging operations and can be moved with dollies or hand carts so containers roll onto forks or a solid pan and are elevated to working height to reduce bending and reaching.

Key Features

• Load Capacity: Supports up to 1,000 lb.
• Lifting Height: Elevates up to 28.5 in.
• Design Options: Fork-style or platform-style configuration available.
• Controls: Pushbutton or footswitch control options.
• Applications: Optimized for totes and junior containers; feeding and offloading tasks.
• Compact footprint and easy portability for confined work areas.

Specifications
Model | Load Capacity | Raised Height | Low Height | Dimensions W x L x H | Voltage Phase/HZ | Ship Weight
SBL-1000 | 1,000 lb | 28.5 in | 2.5 in | 33 in x 36 in x 38 in | 115/1/60 | 600 lb

Technical specifications

• Model: SBL-1000
• Load Capacity: 1,000 lb (≈454 kg)
• Raised Height: 28.5 in (≈72.4 cm)
• Low Height: 2.5 in (≈6.4 cm)
• Dimensions (W x L x H): 33 in x 36 in x 38 in
• Voltage / Phase / HZ: 115 / 1 / 60
• Ship Weight: 600 lb (≈272 kg)
• Design Options: Fork-style or platform-style
• Controls: Pushbutton or footswitch
• Typical applications: Material feeding, offloading and ergonomic staging for small containers
