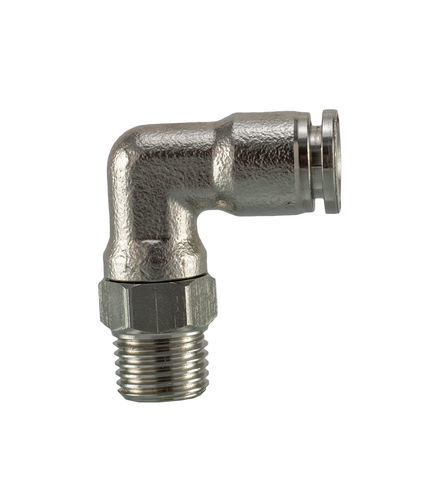

Cross tube connector S-series

elbowT-shapedY

Product Overview
One-touch push-in pneumatic fittings for compressed air and inert gas systems. Range includes male and female connectors, elbows, tees, Y-fittings, crosses, multi-tees and flow control valves for tube Ø 6 mm, 8 mm, 10 mm and 12 mm with BSP 1/8" to 1/2" thread options. 159 catalog configurations available and prices shown in GBP on the page.

Key Features

• One-touch push-in quick connect system
• Tube diameters: 6 mm, 8 mm, 10 mm, 12 mm
• Thread sizes: BSP 1/8"; BSP 1/4"; BSP 3/8"; BSP 1/2"
• Available in male and female thread versions
• Wide selection: tees, elbows, Y and cross fittings, multi-tees
• Flow control valves for adjustable flow
• 159 distinct configurations listed

Available Fitting Types (filters shown on page)

• Bulk Head
• Equal Cross
• Equal Elbow
• Equal Multi Tee
• Equal Tee
• Equal Tube to Tube
• Equal Y
• Female Connector
• Female Elbow
• Flow Control Valve
• Male Branch Tee
• Male Branch Y
• Male Connector
• Male Elbow
• Male Run Tee
• Unequal Tee
• Unequal Tube Connector
• Unequal Y

Thread Sizes Available

• BSP 1/8"
• BSP 1/4"
• BSP 3/8"
• BSP 1/2"

Configurations (sample table)
Part Number | Fitting Type | Tube | Thread | Price (GBP)
SPB6-01 | Male Branch Tee | 6mm | BSP 1/8" | £1.19
SPB6-02 | Male Branch Tee | 6mm | BSP 1/4" | £1.19
SPB6-03 | Male Branch Tee | 6mm | BSP 3/8" | £1.59
SPB6-04 | Male Branch Tee | 6mm | BSP 1/2" | £2.06
SPB8-01 | Male Branch Tee | 8mm | BSP 1/8" | £1.19
SPB8-02 | Male Branch Tee | 8mm | BSP 1/4" | £1.19
SPB8-03 | Male Branch Tee | 8mm | BSP 3/8" | £1.88
SPB8-04 | Male Branch Tee | 8mm | BSP 1/2" | £2.15
SPC6-01 | Male Connector | 6mm | BSP 1/8" | £0.51
SPC6-02 | Male Connector | 6mm | BSP 1/4" | £0.51
SPC6-03 | Male Connector | 6mm | BSP 3/8" | £0.93
SPC6-04 | Male Connector | 6mm | BSP 1/2" | £1.59
(Page lists 159 configurations in total; above are sample table entries shown on the product page.)

Characteristics / Technical specifications

• Product family: S-Series Push-In Pneumatic Fittings
• Application: compressed air and inert gas systems
• Connection system: one-touch push-in
• Supported tube diameters: 6 mm, 8 mm, 10 mm, 12 mm
• Supported thread sizes: BSP 1/8"; BSP 1/4"; BSP 3/8"; BSP 1/2"
• Fitting types: male/female connectors, elbows, tees, Y-fittings, crosses, multi-tees, branch fittings, run tees, flow control valves
• Catalog configurations: 159
• Prices shown per item in GBP as listed on the page
