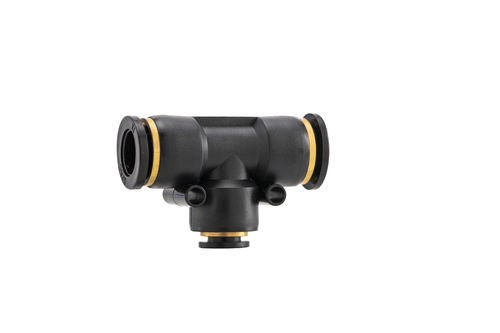

Pneumatic connector E series

T typeM5for tubes

Overview
Quick-connect push-in fittings for pneumatic and instrumentation systems. Connectors, elbows, tees, Y-fittings, banjo elbows, flow control and hand valves across tube sizes 4mm to 16mm with BSP and M5 thread options.

Key features

• Tube diameters: Ø4 mm – Ø16 mm
• Thread options: M5, BSP 1/8" , BSP 1/4" , BSP 3/8" , BSP 1/2"
• Push-in connection for rapid tube installation/removal
• Product types available: Connectors, Elbows, Tees, Y fittings, Banjos, Flow Control Valves, Hand Valves
• Over 250 configurations (page lists 252 configurations)

Available fitting types (filters shown on page)

• Banjo Elbow
• Banjo Elbow 2X
• Banjo Elbow 3X
• Blanking Plug
• Branch Male Y
• Bulk Head
• Cross Connector
• End Plug
• Equal Cross
• Equal Elbow
• Equal Multi Tee
• Equal Tee
• Equal Y
• Female Elbow
• Flow Control Valve
• Hand Valve
• Male Elbow
• Reducer
• Tube Connector
• Unequal Tee
• Unequal Y

Available tube sizes (filters)

• 4mm
• 6mm
• 8mm
• 10mm
• 12mm
• 14mm
• 16mm

Thread options (filters)

• M5
• BSP 1/8"
• BSP 1/4"
• BSP 3/8"
• BSP 1/2"

Product table (selected rows from the series table)
Part Number | Type | Tube | Thread | Price (GBP)
EHVFF6-6-SPAC | Hand Valve | 6mm | Tube-to-Tube | £11.46
EHVFF8-8-SPAC | Hand Valve | 8mm | Tube-to-Tube | £12.11
EHVFF10-10-SPAC | Hand Valve | 10mm | Tube-to-Tube | £14.28
EHVFF12-12-SPAC | Hand Valve | 12mm | Tube-to-Tube | £17.36
EPE04 | Equal Tee | 4mm | Tube-to-Tube | £0.90
EPE06 | Equal Tee | 6mm | Tube-to-Tube | £0.97
EPE08 | Equal Tee | 8mm | Tube-to-Tube | £1.12
EPE10 | Equal Tee | 10mm | Tube-to-Tube | £1.32
EPE12 | Equal Tee | 12mm | Tube-to-Tube | £1.71
EPE14 | Equal Tee | 14mm | Tube-to-Tube | £3.81
EPE16 | Equal Tee | 16mm | Tube-to-Tube | £4.20
EPEG6-4 | Unequal Tee | 6mm | Tube-to-Tube | £1.33
EPEG8-6 | Unequal Tee | 8mm | Tube-to-Tube | £1.83
EPEG10-6 | Unequal Tee | 10mm | Tube-to-Tube | £1.89
EPEG10-8 | Unequal Tee | 10mm | Tube-to-Tube | £1.98
EPEG12-8 | Unequal Tee | 12mm | Tube-to-Tube | £2.13
EPEG12-10 | Unequal Tee | 12mm | Tube-to-Tube | £2.38
EPEW6-4 | Unequal Tee | 6mm | Tube-to-Tube | £1.33
EPEW8-6 | Unequal Tee | 8mm | Tube-to-Tube | £1.83
EPEW10-6 | Unequal Tee | 10mm | Tube-to-Tube | £1.89
EPEW10-8 | Unequal Tee | 10mm | Tube-to-Tube | £1.98
EPEW12-8 | Unequal Tee | 12mm | Tube-to-Tube | £2.13
EPEW12-10 | Unequal Tee | 12mm | Tube-to-Tube | £2.38
EPG6-4 | Reducer | 6mm | Tube-to-Tube | £0.97
EPG8-6 | Reducer | 8mm | Tube-to-Tube | £1.19
EPG10-6 | Reducer | 10mm | Tube-to-Tube | £1.32
EPG10-8 | Reducer | 10mm | Tube-to-Tube | £1.32
EPG12-8 | Reducer | 12mm | Tube-to-Tube | £1.57
EPG12-10 | Reducer | 12mm | Tube-to-Tube | £1.57
EPG16-12 | Reducer | 16mm | Tube-to-Tube | £3.65
EPH4-01 | Banjo Elbow | 4mm | BSP 1/8" | £2.64
EPH4-02 | Banjo Elbow | 4mm | BSP 1/4" | £2.90
EPH4-M5 | Banjo Elbow | 4mm | M5 | £2.79
EPH6-01 | Banjo Elbow | 6mm | BSP 1/8" | £2.79
EPH6-02 | Banjo Elbow | 6mm | BSP 1/4" | £3.04
EPH6-03 | Banjo Elbow | 6mm | BSP 3/8" | £4.02
EPH6-M5 | Banjo Elbow | 6mm | M5 | £2.91
EPH8-01 | Banjo Elbow | 8mm | BSP 1/8" | £4.23
EPH8-02 | Banjo Elbow | 8mm | BSP 1/4" | £4.23
EPH8-03 | Banjo Elbow | 8mm | BSP 3/8" | £5.38
EPH8-04 | Banjo Elbow | 8mm | BSP 1/2" | £7.70
EPH10-02 | Banjo Elbow | 10mm | BSP 1/4" | £5.38
EPH10-03 | Banjo Elbow | 10mm | BSP 3/8" | £6.00
EPH10-04 | Banjo Elbow | 10mm | BSP 1/2" | £7.70
EPH12-02 | Banjo Elbow | 12mm | BSP 1/4" | £6.50
EPH12-03 | Banjo Elbow | 12mm | BSP 3/8" | £7.70
EPH12-04 | Banjo Elbow | 12mm | BSP 1/2" | £8.64
EPH2X4-01 | Banjo Elbow 2X | 4mm | BSP 1/8" | £4.95
EPH2X4-02 | Banjo Elbow 2X | 4mm | BSP 1/4" | £6.93

Technical specifications

• Series name: E-Series Push-In Fittings
• Application: pneumatic and instrumentation systems
• Tubing compatibility: Ø4 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm, Ø14 mm, Ø16 mm
• Connection type: Push-in quick connect
• Thread options: M5, BSP 1/8", BSP 1/4", BSP 3/8", BSP 1/2"
• Product forms: Connectors, elbows, tees, Y fittings, banjo elbows, flow control valves, hand valves, reducers, plugs
• Number of configurations listed on page: 252
• Prices shown on page are in GBP (examples provided in table). Prices vary by part number and size.
