Mechanical profilometer WS series

geometryfor profilesfor the automotive industry

Overview

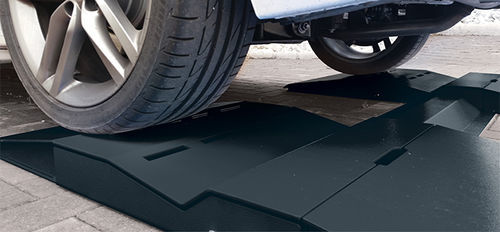

WS Series Profiler is a modular tyre profile measuring system composed of profiler platforms with integrated tyre‑profile readers, run‑up and run‑off ramps, cable covers and an operator console. Two main configurations are available: Stand‑alone and Reception‑area version.

Stand‑alone version

• Set of profiler platforms including integrated tyre‑profile reading system
• Run‑up ramps and run‑off ramps
• Cable covers
• Operator console

Version for reception area

• Electrical cabinet complete with PC to connect to the workshop/office PC (PC on client side, not supplied)
• Run‑up ramps (drive‑through) — configuration dependent
• Central profiler platforms with integrated tyre‑profile reading system
• Run‑off ramps — configuration dependent

Additional notes
Images are indicative and specifications may change; final configuration depends on selected options and local requirements.

Available attachments

• Brochure (PDF)
• Product video

Technical specifications

• Series name: WS Series Profiler
• Available versions: Stand‑alone; Reception‑area version
• Includes: profiler platforms, run‑up ramps, run‑off ramps, cable covers, operator console
• Reception‑area version includes electrical cabinet with PC (PC to be connected to client PC; not supplied)
• Central platforms integrate the tyre‑profile reading system
• Attachments: brochure (PDF) and product video available
• Note: compositions and technical data may vary
