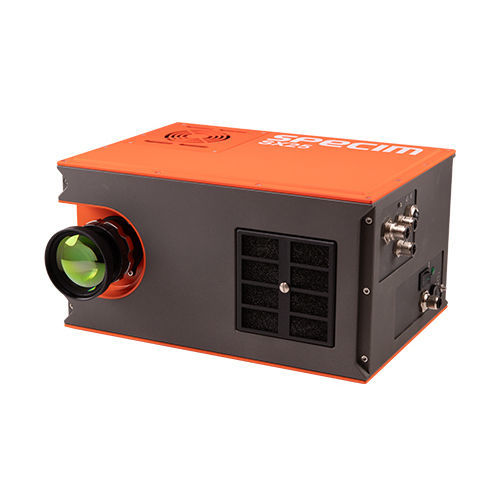

Hyperspectral camera Specim SX25

industrialmedicalagriculture

High Resolution SWIR (960–2500 nm) Hyperspectral Camera The Specim SX25 is a high-resolution short-wave infrared (SWIR) hyperspectral camera for the most demanding material analysis. Operating in the 960–2500 nm range, it delivers 640 spatial pixels, up to 392 selectable spectral bands, 8 nm spectral resolution, and a superior 1500:1 signal-to-noise ratio – capturing even the most closely spaced spectral features with exceptional precision and data quality. The Specim SX25 is the top choice for research, laboratory, and industrial applications where precision, repeatability, and efficiency are essential. - High Resolution: Unmatched precision - Superior Signal-to-Noise Ratio: Detailed and reliable results - GigE Vision interface: Seamless system integration - Flexible High-Quality Optics: Lens options and adjustable working distance from wide area to macro imaging - Built-in Advanced Image Enhancement: Ready-to-use data with minimal post-processing - Unified Spectral Calibration: Consistent and comparable data across units Precise and Repeatable Material Analysis Beyond the Visible From coating layer inspection and mineral and ore classification to food quality inspection, agricultural and pharmaceutical research, and cultural heritage conservation, the Specim SX25 combines spatial accuracy, spectral detail, and high optical performance to meet the needs of the most demanding users. Typical Applications: - Surface and Coating Inspection - Mineral and Ore Classification - Food Inspection - Pharmaceutics and Medical Research - Plastics and Textile Recycling - Cultural Heritage and Art Conservation - Agriculture and Vegetation - Environmental Monitoring Technical Specifications / Features: - SWIR spectral range: 960–2500 nm - 640 spatial pixels - Up to 392 selectable spectral bands - 8 nm spectral resolution - 1500:1 signal-to-noise ratio - GigE Vision interface - Advanced image enhancement - Unified spectral calibration - Flexible lens options
