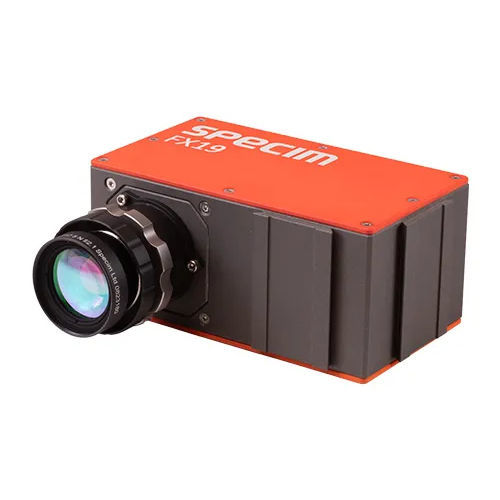

Hyperspectral camera Specim FX19

line-scanindustrialfor research and development

Overview
Specim FX19 is a high-speed push-broom hyperspectral camera for inline industrial inspection and advanced R&D, operating in the extended NIR/SWIR range of 1130–1920 nm. Built on the Specim FX series platform, it delivers 640 spatial pixels and frame rates up to 527 fps, enabling precise, high-throughput material identification on fast conveyor systems.

Main features and benefits

• High speed: Up to 527 fps for fast conveyor systems
• 640 spatial pixels: For detailed material analysis
• GigE Vision interface: Easy integration with standard GigE Vision systems
• Flexible high-quality optics: Lens options and adjustable working distance from wide-area to macro imaging
• Built-in advanced image enhancement: Ready-to-use data with minimal post-processing
• Unified spectral calibration: Consistent and comparable data across units

Typical applications

• Plastics, paper and electronic waste sorting
• Textile recycling and textile sorting
• Foil and thin-film inspection
• Pharmaceutics (inspection and material identification)

Notes
Designed for inline industrial inspection and advanced R&D workflows; supports integration into high-throughput conveyor systems. Datasheet available for detailed performance and optical configurations.

Technical specifications

• Spectral range: 1130–1920 nm (extended NIR / SWIR)
• Spatial resolution: 640 spatial pixels
• Maximum frame rate: Up to 527 fps (dependent on configuration and ROI)
• Camera type: Push-broom hyperspectral camera
• Interface: GigE Vision
• Optics: Multiple lens options; adjustable working distance (wide-area to macro)
• Image processing: Built-in advanced image enhancement functions
• Calibration: Unified spectral calibration across units
• Intended use: Inline industrial inspection, high-throughput material identification, advanced R&D
• Product family: Specim FX series
