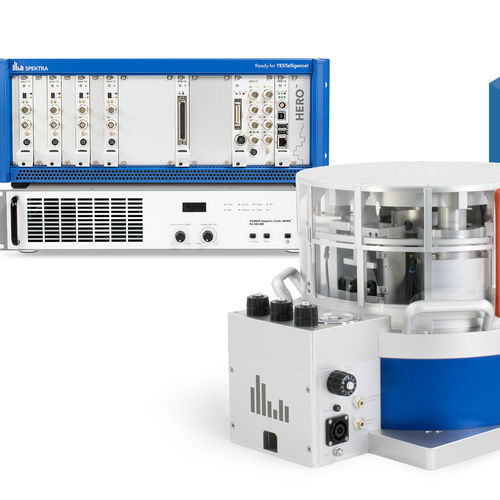

Vibration calibration system CS Q-LEAP™ SINE with SE-13

accelerationlaboratory

The CS Q-LEAP™ system is based on the HERO™ vibration controller and the SE-13 air-bearing electrodynamic vibration exciter. It is used for seismic simulation and high-accuracy secondary calibration of seismometers and geophones. Key features Frequency range: 0.2 Hz…400 Hz Traceable to PTB (German National Metrology Laboratory) Calibration of vibration sensors, seismic sensors and geophones Integrated sensor database Integrated e-Cal™ software for the generation of calibration certificates (print, PDF...) Easy data exchange with applications like ERP systems or measuring equipment databases Technical data Max. stroke: 25 mm (1 inch) Max. velocity: 300 mm/s (12 inch/s) Max. acceleration: 60 m/s² (6 gn) peak Operation: vertical Moving element weight: 8 kg (18 lbs) Max. payload: 50 kg (110 lbs) CS Q-LEAP™ software sine calibration sine sweep vibration measurement vibration generation more on demand Typical DUTs heavy seismic sensors (Seismometers) seismic simulation for components geophones for structure / building vibration measurement Standards ISO 16063 - 21: Calibration of vibration transducers by comparison to a reference transducer ISO 17025: General requirements for the competence of testing and calibration laboratories DIN 45669: Sensors for measurement of vibration immission
