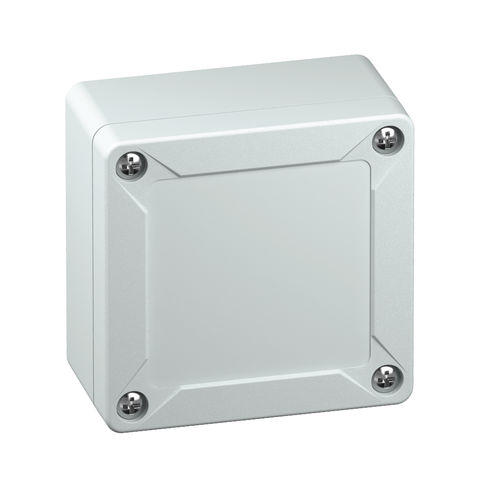

Wall-mount enclosure TG PC 88-6-o rectangularsquarepolycarbonate
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular, square
- Material
- polycarbonate
- Protection level
- impact-resistant, halogen-free, insulated, heavy-duty, IP66, IP67
- Other characteristics
- sealed, empty, screw cover, with transparent cover
- Width
Max.: 302 mm
(11.9 in)Min.: 84 mm
(3.3 in)- Height
Max.: 232 mm
(9.1 in)Min.: 82 mm
(3.2 in)- Depth
Max.: 110 mm
(4.33 in)Min.: 55 mm
(2.17 in)
Description
Empty enclosure, with protection class IP66/IP67, Polycarbonate, certified according to DLG (Ammonia resistance), UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), Ui=690V AC, Ui=1000V DC, Internal fastening points, for installations in the industrial environments and protected outside areas, with quick release
Box: Polycarbonate, grey, Lid: Polycarbonate, grey, smooth sidewalls
Cover retainer, 4 fastening screws for accessories
Catalogs
TG PC 88-6-o
2 Pages
