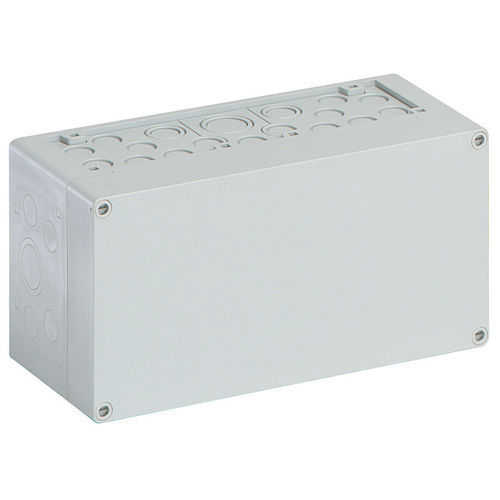

Empty enclosure Aki wall-mountrectangularpolycarbonate
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- polycarbonate, glass fiber-reinforced plastic
- Application
- industrial
- Protection level
- reinforced, IK 08, IP65
- Other characteristics
- empty
- Width
300 mm
(11.8 in)- Height
132 mm
(5.2 in)- Depth
150 mm
(5.9 in)
Description
Empty enclosure, with protection class IP65, Polycarbonate, Ui=690V AC, Ui=1000V DC, Internal fastening points, for installations in the industrial arena and protected outside areas
Box: Polycarbonate, Lid: Polycarbonate, glass-fibre reinforced, grey, Push-out membranes, M20/M25/M32/M40, (46 Side)
10 Double-membrane seal IP66 M20 sealing area 7 - 12 mm, 2 Double-membrane seals IP66 M25 sealing area 9 - 16 mm, 2 Double-membrane seal M32 sealing area 14 - 21 mm, 1 Double-membrane seal IP66 M40 sealing area 19 - 28 mm
