Condensate drain FTS14

steamautomaticfloat

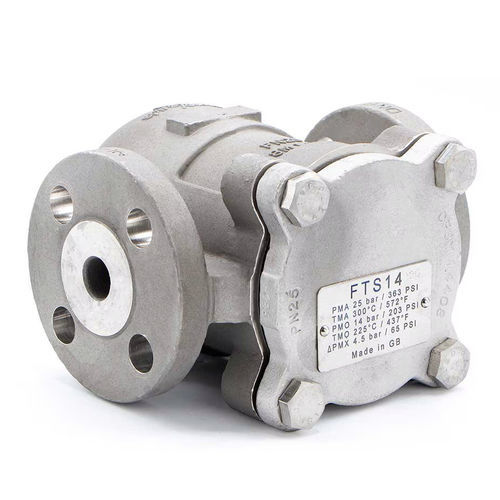

The FTS14 is an austenitic stainless steel ball float trap with an integral automatic air vent suitable for use on steam systems up to 14 bar. The trap offers excellent corrosion resistance and a positive aesthetic appearance. It is suitable for sterilisers, autoclaves, process vessels and heat exchangers. Description The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent.It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential.As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to besimply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations. Standards This product fully complies with the requirements of the Pressure Equipment Directive (PED). Certification This product is available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be stated at the time of order placement
