- Spitznas Maschinenfabrik GmbH

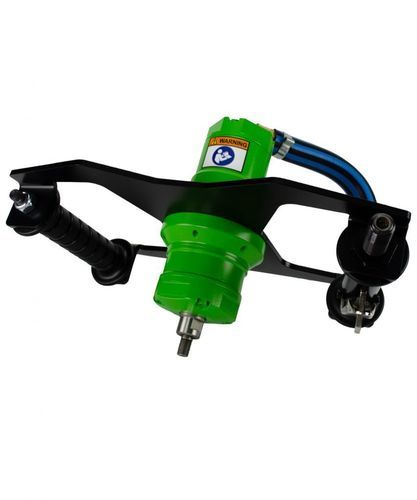

Hand-held mixer 7 1115 0040dynamicbatchfor liquids
Add to favorites
Compare this product
Characteristics
- Technology
- dynamic
- Configuration
- hand-held
- Batch/continuous
- batch
- Product type
- for liquids
- Other characteristics
- explosion-proof, ATEX, air-driven
- Engine power
0.85 kW
(1.16 hp)- Flow
84 m³/h
(2,966.432 ft³/h)- Empty weight
4.1 kg
(9 lb)
Description
Short description
Pneumatic mixer for universal industrial use; suitable for explosive atmospheres (equipment group II, category 2G). Order no. 7 1115 0040.
Main attributes
Technical Data
Accessories
Extensions
Service units
Characteristics / technical specifications
Pneumatic mixer for universal industrial use; suitable for explosive atmospheres (equipment group II, category 2G). Order no. 7 1115 0040.
Main attributes
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Actuation: Lever valve
- ATEX: II2GExhIIBT4GbX
Technical Data
- Order no.: 7 1115 0040
- ATEX specification: II2GExhIIBT4GbX
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Valve type: Lever valve
- Stirring tool max. dia.: 100.00 mm
- Mix capacity / batches up to: 50.00 kg
- Power: 0.85 kW
- Gear stages: 1
- Speed (1st gear): 2,850 rpm
- Air consumption: 1.40 m³/min
- Tool shank/thread: M14 mm
- Connection: R3/8" male
- Noise level LpA: 79.0 dB(A)
- Noise level LWA: 90.0 dB(A)
- Vibration level: <2.5 m/s²
- Weight: 4.1 kg
- Fields of application: Plant and mechanical construction
Accessories
- 9 7001 0010 | Round stirrer, for liquid material with low viscosity | M14 male | Ø 100.00 mm | L 600.00 mm
- 9 7001 0020 | Round stirrer, for liquid material with low viscosity | M14 male | Ø 120.00 mm | L 600.00 mm
- 9 7002 0010 | Helicon ribbon stirrer, for doughy material with high viscosity | M14 male | Ø 100.00 mm | L 600.00 mm
- 9 7002 0020 | Helicon ribbon stirrer, for doughy material with high viscosity | M14 male | Ø 120.00 mm | L 600.00 mm
- 9 7002 0030 | Helicon ribbon stirrer, for doughy material with high viscosity | M14 male | Ø 135.00 mm | L 600.00 mm
- 9 7002 0040 | Helicon ribbon stirrer, for doughy material with high viscosity | M14 male | Ø 160.00 mm | L 600.00 mm
- 9 7003 0010 | Mortar stirrer, for finishing compound, lime and concrete | M14 male | Ø 120.00 mm | L 600.00 mm
- 9 7003 0020 | Mortar stirrer, for finishing compound, lime and concrete | M14 male | Ø 140.00 mm | L 600.00 mm
- 9 7003 0030 | Mortar stirrer, for finishing compound, lime and concrete | M14 male | Ø 160.00 mm | L 600.00 mm
- 9 7004 0010 | Disc stirrer, for mixing of liquid mediums | M14 male | Ø 120.00 mm | L 590.00 mm
- 9 7004 0020 | Disc stirrer, for mixing of liquid mediums | M14 male | Ø 150.00 mm | L 500.00 mm
Extensions
- 9 7005 0050 | Extension | M14 | Length 150.00 mm
- 9 7005 0010 | Extension | M14 | Length 250.00 mm
Service units
- 9 2406 0260 | Portable service unit with pressure regulator 3/4"
- 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4"
Characteristics / technical specifications
- Order number: 7 1115 0040
- ATEX specification: II2GExhIIBT4GbX
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Valve type: Lever valve
- Stirring tool max. diameter: 100.00 mm
- Mix capacity / batches up to: 50.00 kg
- Power: 0.85 kW
- Gear stages: 1
- Speed (1st gear): 2,850 rpm
- Air consumption: 1.40 m³/min
- Tool shank/thread: M14 mm
- Connection: R3/8" male
- Noise level LpA: 79.0 dB(A)
- Noise level LWA: 90.0 dB(A)
- Vibration level: <2.5 m/s²
- Weight: 4.1 kg
- Fields of application: Plant and mechanical construction
