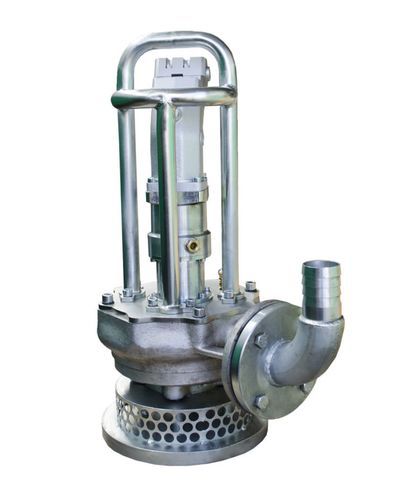

Centrifugal pump Sump Pumpwaterfor cooling waterhydraulically-operated
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, for cooling water
- Operation
- hydraulically-operated
- Priming
- submersible
- Mobility
- mobile
- Domain
- industrial, for the energy industry, for the construction industry
- Protection level
- ATEX
- Flow
Max.: 80 m³/h
(2,825.17334 ft³/h)Min.: 1.8 m³/h
(63.5664 ft³/h)- Pressure
Max.: 250 bar
(3,625.943 psi)Min.: 250 bar
(3,625.943 psi)- Head
Max.: 45 m
(147'07" )Min.: 45 m
(147'07" )- Output diameter
Max.: 52 mm
(2.047 in)Min.: 52 mm
(2.047 in)- Length
Max.: 290 mm
(11 in)Min.: 290 mm
(11 in)- Width
Max.: 495 mm
(19.49 in)Min.: 495 mm
(19.49 in)- Height
Max.: 665 mm
(26.18 in)Min.: 665 mm
(26.18 in)- Weight
Max.: 53 kg
(116.84 lb)Min.: 53 kg
(116.84 lb)
Description
Product description
The hydraulic submersible sump pump 7 1106 0010 is designed for pumping relatively clean fluids such as water and cooling agents (not for grinding/abrasive liquids). The pump can be fully immersed (minimum immersion depth: 240 mm) and is suitable for use in potentially explosive atmospheres (ATEX). It provides a high conveyance rate in a compact unit for underwater and confined-space operations.
Main attributes
Technical data
Order no.: 7 1106 0010
ATEX specification: IM2ExhIMbT3 / II2GExhIIBT3Gb
Energy source: Hydraulic
Operating pressure: 250 bar
Pumping capacity at 10 m: 80.0 m³/h
Max. pumping head: 45.0 m
Delivery outlet: DN50-PN10 / nozzle dia. 52 mm
Volume flow: 30 l/min
Dimensions (H×L×W): 665 × 290 × 495 mm
Hydraulic connection: 3/4-16UNF-2B
Noise level LpA: <70 dB(A)
Weight: 53.0 kg
Fields of application
The hydraulic submersible sump pump 7 1106 0010 is designed for pumping relatively clean fluids such as water and cooling agents (not for grinding/abrasive liquids). The pump can be fully immersed (minimum immersion depth: 240 mm) and is suitable for use in potentially explosive atmospheres (ATEX). It provides a high conveyance rate in a compact unit for underwater and confined-space operations.
Main attributes
- Energy source: Hydraulic
- Max. pumping head: 45 m
- Pumping capacity (at 10 m): 80.0 m³/h
- Volume flow: 30 l/min
- Underwater operation; minimum immersion depth: 240 mm
- ATEX: IM2ExhIMbT3 / II2GExhIIBT3Gb
- Weight: 53.0 kg
Technical data
Order no.: 7 1106 0010
ATEX specification: IM2ExhIMbT3 / II2GExhIIBT3Gb
Energy source: Hydraulic
Operating pressure: 250 bar
Pumping capacity at 10 m: 80.0 m³/h
Max. pumping head: 45.0 m
Delivery outlet: DN50-PN10 / nozzle dia. 52 mm
Volume flow: 30 l/min
Dimensions (H×L×W): 665 × 290 × 495 mm
Hydraulic connection: 3/4-16UNF-2B
Noise level LpA: <70 dB(A)
Weight: 53.0 kg
Fields of application
- Energy and pipeline construction
- Plant and mechanical engineering
- Underwater work and confined-space pumping
