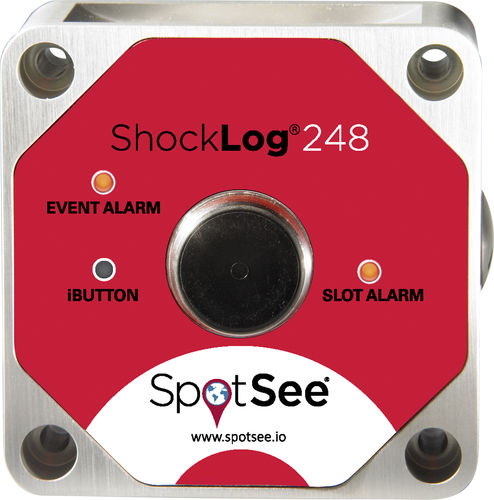

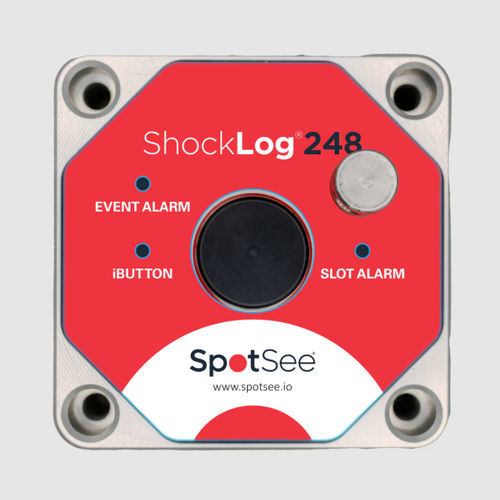

Temperature data-logger ShockLog® 248

humidityfrequencyacceleration

ShockWatch ShockLog(R) 248 monitors and records impact and environmental conditions experienced by any type of structure or equipment, whether in use, transit, or storage. The device alerts you when damage may have occurred, so you can respond promptly. ShockLog impact recorders help deter mishandling by increasing accountability at every step of the journey.The iButton® allows for easy access control during startup, shutdown and setup. A full journey report can be downloaded using the iButton while keeping the unit secure and tamper proof. Records first plus the 14 most severe events (detailed curves) - Delivers notification of up to 128 events (event summary log) - Up to 262,000 time slots SHOCKLOG 248 FEATURES Record impact events - max peaks X, Y, and Z and internal temperature Optional temperature/humidity sensor Field-proven triaxel piezoelectric accelerometer technology iButton® and USB data transfer options Self-contained unit design, free of cables and wires LED lights for visual notification of alarms and warnings Programmable wake-up values for maximizing battery life IP67-rated, RF-screened Show direction of impact—X, Y, and Z SPECIFICATIONS Operating Temperature Range: -40°C to 85°C - Size: 84 mm x 84 mm x 55 mm - Weight: 445g (without battery) Battery: One (1) 3.6V Lithium Thionyl Chloride OR One (1) 1.5V Alkaline Size AA - Battery Life: 12 months Scale Factor: ±2% - Acceleration Range (Factory Set): ±10G, ±30G, ±100G Cut-off Frequency Options: 40 Hz, 90 Hz, and 250 Hz - Warning and Alarm Threshold (% of Range): 11–95% Wake-Up Time: 0.25 mS - Humidity: 0–100% RH Temperature: -40°C to 85°C - Dew Point: -40°C to 85°C, 0–100% RH
