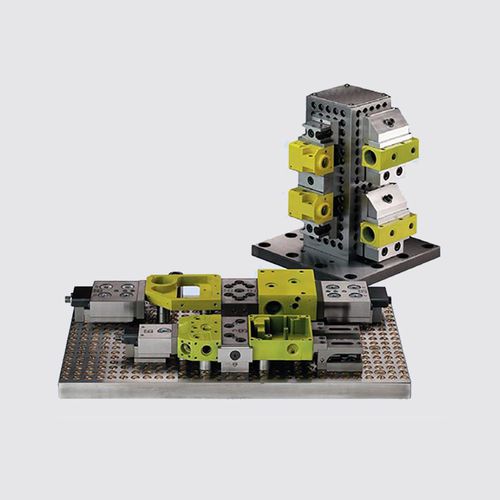

Clamping and fixture system

The modular clamping and fixture system provides maximum flexibility for precise manufacturing and assembly processes. Based on an intelligent design with a standardized hole pattern, a wide variety of workpieces can be positioned and clamped quickly, securely and with high repeatability.

The system is ideally suited for single-part production, small batch manufacturing and complex multiple clamping applications in serial production. Various clamping, support and positioning elements can be flexibly combined and precisely adapted to the specific application. This enables customized fixture solutions with high stability and process reliability.

Thanks to the modular design, fixtures can be reconfigured or expanded within a very short time. The reusable components reduce setup times, lower production costs and simultaneously increase efficiency in manufacturing and quality assurance.

The clamping system features:
• High repeatability
• Flexible expandability
• Fast setup and changeover times
• Robust and durable construction
• Economical reusability of components
• Optimal adaptation to complex workpieces

Whether milling, drilling, measuring, testing or assembly – the clamping and fixture system enables precise, reliable and cost-effective manufacturing solutions for a wide range of industrial applications.
