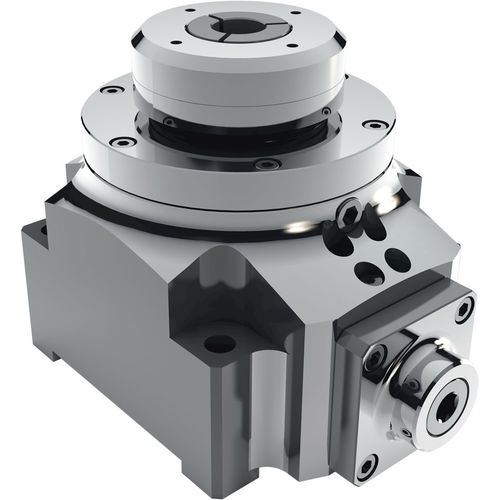

SK workpiece clamping chuck / collet / for metrology / manual
SK-2 series

Add to MyDirectIndustry favorites
Compare this product
SK workpiece clamping chuck / collet / for metrology / manual SK workpiece clamping chuck / collet / for metrology / manual - SK-2 series
{{requestButtons}}

Characteristics

  • Machine mount:

    SK

  • Clamping method:

    collet

  • Application:

    for metrology

  • Other characteristics:

    manual

  • Clamping range:

    84 mm, 106 mm, 122 mm, 136 mm (3.31 in)

Description

Mechanical manual chucks with high precision, holding force and rigidity for use on machining centers, prototyping and metrology.
The version SK -2 provides, due to the optimized force transmission in both axial directions, maximum flexibility.


Advantages at a glance

Horizontal and vertical mounting
Highest clamping force and rigidity
Flexible design

Material: steel
Finish: surface hardened and precision grinded
Repetition accuracy < 0,01 mm
Suitable for external and internal clamping.

Explanation type: model clamping range round (mm)

Type: SK 32-2, SK 42-2, SK 52-2, SK 65-2, SK 80-2.

Please specify the type when raising a request.
