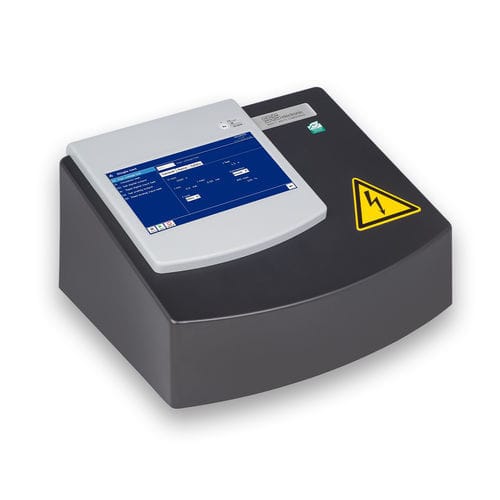

Hipot tester HA 1805B

high-voltageinsulationfor electrical appliances

The HA 1805B hipot tester combines high-voltage testing (AC and DC) and insulation testing in a single device. The HA 1805B is ideal for fast, cost-effective and convenient safety testing in accordance with current national and international standards (IEC, EN, UL, VDE etc.). The integrated 10.1" touch color display ensures maximum convenience and ease of use. Simple and clear instructions on the display make operation intuitive and efficient. Thanks to the individually configurable test programs, a fully automatic test plan can also be created for each product. With a short-circuit current of 3 mA AC / 10 mA DC, the HA 1805B tester is safety current-limited (in accordance with EN 50191) and makes it easier to set up a safe workplace. This means that it can be used by non-qualified electricians. The HA 1805B also has a fully electronic high-voltage generator, which ensures accurate and fast testing. Ergonomic desktop device High voltage test AC: 100 - 5,500 V / 0 - 3 mA High voltage test DC: 100 - 6,000 V / 0 - 10 mA Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ ARC detection (optional): 0 - 100 % Wide-range power supply unit: 90 V to 253 V, 50 Hz / 60 Hz
