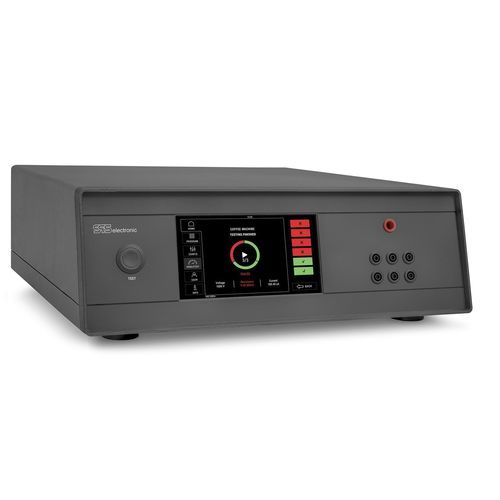

Hipot tester HA 6600H

high-voltageinsulationAC

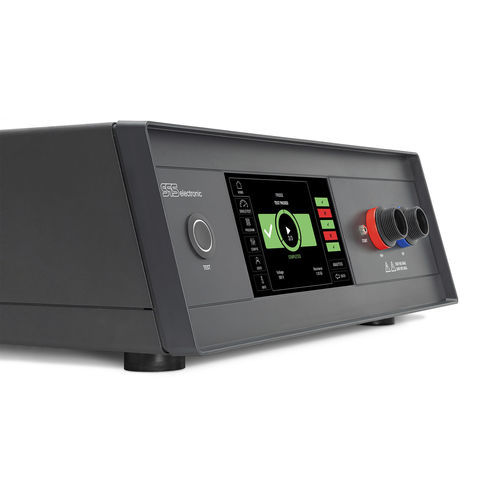

• Modern desktop device • High-voltage test AC: 100 - 5,500 V / 0 - 20 mA • DC high voltage test: 100 - 6,000 V / 0 - 20 mA • Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 50 GΩ • Complies with all current standards (IEC, UL, EN, VDE, etc.) • Wide-range power supply unit: 90 - 253 V, 50 Hz / 60 Hz The HA 6600H and HA 6680U hipot testers are outstanding solutions for carrying out high-voltage tests and combine advanced technology with sophisticated design. The HA 6600H is a modern desktop unit, while the HA 6680U is designed as a plug-in unit that can be ideally integrated into existing racks. The HA 6600H desktop unit has high-voltage plug-in connections for the SP 02 and SP 03 safety test pistols on the front panel. These connections enable simple and safe integration of the test pistols for high-voltage tests. In contrast, the HA 6680U has banana sockets and high-voltage sockets on the rear panel for connecting the DUT. This ensures a versatile and efficient connection option that is ideal for integration into existing test environments. Both devices have the same technical data and are designed for carrying out high-voltage tests. They enable high-voltage tests in the range from 100 to 6,000 V with direct current (DC) as well as high-voltage tests with alternating current (AC) in the range from 100 to 5,500 V. These tests guarantee a thorough inspection of the insulation properties of electrical devices to ensure that they fulfil the requirements of electrical safety. Overall, the HA 6600H and HA 6680U high-voltage testers are a reliable choice for anyone who demands the highest standards of safety and reliability from electrical systems.
