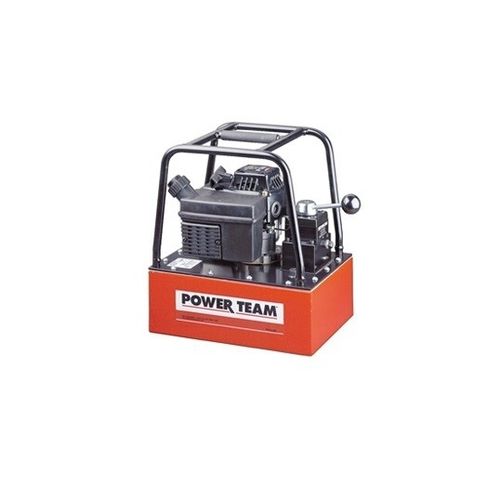

Gasoline engine hydraulic pump PG series

double-actingsingle-actingremote control

Gasoline power ideal for remote locations. A logical choice at work sites where electricity or compressed air are unavailable. For single or double-acting cylinders at operating pressures up to 10,000 psi. All gasoline engine/hydraulic pumps feature Posi-Check® valve to guard against pressure loss when valve is shifted from “advance” to “hold.” PG303 and PG304 (Up to 75 Ton) • - Powered by a 4-cycle, 2 hp Honda engine giving it the lowest weight to horsepower ratio of all gasoline driven pumps. • - Has an aluminum reservoir with 375 cu. in. of usable oil. • - PG30 series pumps are equipped with roll cages to protect pump from damage. • - PG303 is for single-acting cylinders, has a 9520 valve with separate internal return line which allows oil from running pump to return to reservoir, independently of cylinder return oil, when valve is in “return” position. • - PG304 is for double-acting cylinders, has a 9506 4-way (tandem center) valve. PG553 and PG554 (Up to 150 Ton) • - 6 hp Intek “Diamond Edge” 4-cycle, by Briggs & Stratton. • - 5 gallon reservoir. • - PG553 has a 9520 3-way valve for single-acting cylinders. • - PG554 has a 9506 4-way valve for double-acting cylinders. • - Optional roll cage available.
