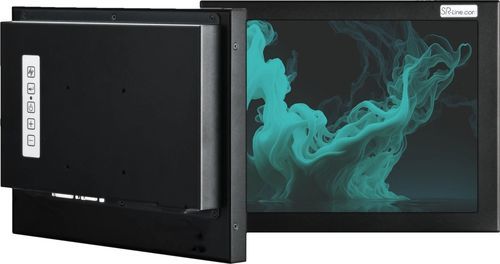

Resistive touch screen panel PC M-IPC 12/8

12.1"1024 x 768Intel® Pentium® N4200

Product description: This 12" device with IPS panel is particularly suitable for mobile applications thanks to its light aluminum metal housing. Alternatively, there is also a version with an integrated embedded PC. Product options: - Front plate or housing in different colour: RAL 7035 - Touchscreen: Touch resistive - Power supply: 24 V DC, 12 V DC, 12 V DC ext. Netzteil 230 V AC - Operating System OS: Windows 10 IoT Enterprise LTSC, Windows 10 Pro 64-Bit OEM Vollversion - CPU-Model options: Intel® Pentium® Quad Core N4200 2 GB RAM / 64 GB SSD, Intel® Core™ i5 8 GB RAM / 250 GB SSD, Intel® Core™ i7 8 GB RAM / 250 GB SSD Product also available as: Monitor Technical Specifications: - Housing: chassis - Display size: 12.1" - Resolution: 1024 x 768 XGA - Brightness: 600 cd/m² - Contrast ratio: 1000:1 - Power supply: 90~ 264 V AC - Viewing angle: 178° / 178° Reasons to decide for SR SYSTEM-ELEKTRONIK: - MultiTouch industrial monitors - Panel mount (aluminum frame) - Ruggedized, long term available - No edge or steps in front - Flat, smooth front protection against dirt or dust - Attachment above mounting brackets or VESA Areas of application: Monitors and panel PCs can be found in numerous applications such as information displays at train stations, airports, museums, public buildings or hospitals. - (Industry-) Automation - Mechanical and plant engineering - Measurement and control technology - Digital Signage Characteristics / Technical Specifications: - Model: M-IPC 12/8 - Order number: M-IPC2 12/8 - CPU options: Intel® Pentium® Quad Core N4200, Intel® Core™ i5, Intel® Core™ i7 - RAM/Storage: 2 GB RAM / 64 GB SSD (Pentium), 8 GB RAM / 250 GB SSD (i5/i7) - Display: 12.1" IPS panel, 1024 x 768 XGA, 600 cd/m², 1000:1 contrast, 178° viewing angle - Housing: Light aluminum metal chassis - Touchscreen: Resistive (option) - Power supply: 90~264 V AC, 24 V DC, 12 V DC, 12 V DC ext. Netzteil 230 V AC - Operating System: Windows 10 IoT Enterprise LTSC, Windows 10 Pro 64-Bit OEM Vollversion - Mounting: Panel mount (aluminum frame), VESA - Front: Flat, smooth, no edge or steps, protection against dirt/dust - Long-term availability, ruggedized design
