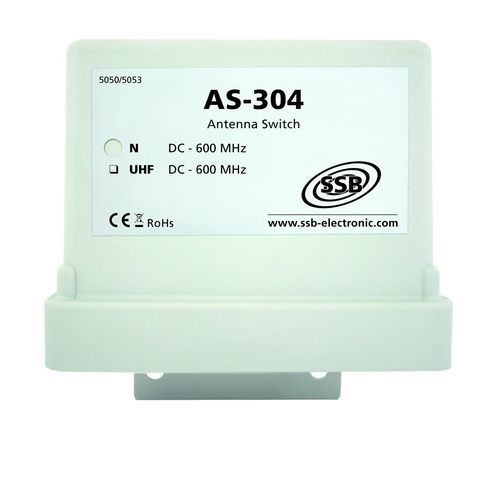

Single-pole switch AS 304-NcontrolLEDpower
Add to favorites
Compare this product
Characteristics
- Number of poles
- single-pole
- Other characteristics
- control, LED, power, power
Description
4 antennas in total can be controlled by the AS 304 via a common feeding cable,
losses are very low. The used power relays allow powers up to 1500 Watt PEP on
shortwave. The water protected switch can be mounted directly at the antenna
mast. For switching a separate 4-coil control cable is necessary, 12 V / 50 mA
each.
Technical Data - AS-304 N
Impedance: - 50 Ohms
Transmission Power (PEP): - 10m ........... 800W
6m - 2m ..... 800W
70cm ......... 600W
Attenuation: - 0,15 dB
Connector: - N-Buchse
Power supply: - 12V -14V @ 60mA
max. diameter clamp: - 58mm
