Power amplifier WL 5600-1

voltagetransmission

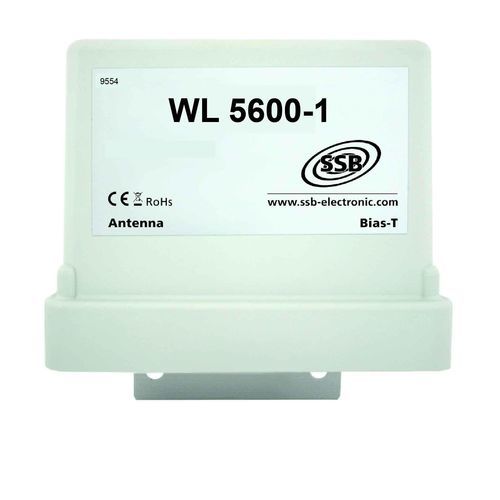

The WL 5600-1 offers an output power of 1W (CW) with a transmission gain of typ. 27dB. A gain of typ. 22dB is achieved in the reception. The frequency range extends over the entire WLAN 5 GHz (5.180GHz – 5.825GHz) range. The unit is delivered in a mast housing. TRX and ANT are equipped with N-type female connectors. There is no separate input for the supply voltage. The supply may be provided via a remote switch, e.g. DCC 2,4 - 5,6 GHz (included in delivery). The remote switch is connected to the TRX input and requires 12V – 14V. The router is connected before the remote switch. The antenna is connected to the antenna input. The WL5600-1 is equipped with an automatic transmission / reception switch. If the TRX input is without power, the device is in the receive mode. In order to switch to transmission safely, the input should have a power of at least -10 dBm. It should also be noted that the maximum input power at TRX must not exceed 6dBm. The saturation effects of the receiving amplifiers start at -10dBm. This power should not be exceeded, as otherwise the data rade may drop.
