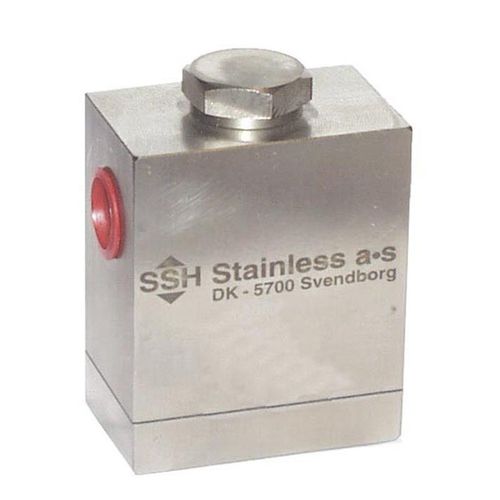

Stainless steel check valve PKV-06ballfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Fluid
- for water, for oil
- Connexion
- BSP
- Material
- stainless steel
- Other characteristics
- pilot-operated, hydraulic
- DN
0.375 in
- Pressure
200 bar
(2,900.8 psi)- Flow rate
Max.: 20 l/min
(5.28 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
The PKV-06 valve, made of stainless steel W.St.1.4301, allows unrestricted flow from V to C ports and blocks flows in the opposite direction until pressure is applied on the pilot port.
PKV-06 is used as a static load holder.
