Thermal conductor film
siliconefor automotive applicationsfor the electronics industry

thermal conductor film
thermal conductor film
thermal conductor film
thermal conductor film
thermal conductor film
thermal conductor film
thermal conductor film
Add to favorites
Compare this product


Characteristics

Type
thermal conductor
Material
silicone
Applications
for automotive applications
Application field
for the electronics industry
Other characteristics
roll, thin, electrically isolating, heat sink
Width

Max.: 500 mm
(19.69 in)

Min.: 228 mm
(8.98 in)

Length

Max.: 25,000 mm
(82.02 in)

Min.: 228 mm
(8.98 in)

Thickness

Max.: 0.5 mm
(0.02 in)

Min.: 0.1 mm
(0.004 in)

Description

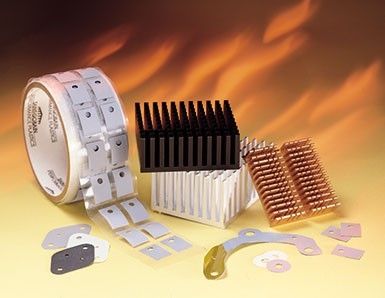

Thermally conductive insulators (TIM) are usually foils made of silicone, which can be reinforced with glass fibers. They are electrically insulating and can be supplied with a thermally conductive adhesive. Thermally conductive insulators are used to improve heat conduction between the heat spreader and its component. Unlike thermal greases and pastes, they ensure the repeatability of the assembly. Applications : - Automotive modules, transmission controls - Telecommunications - Power semiconductors - Wireless communications hardware - Power conversion - Battery pack and Battery management system BMS
