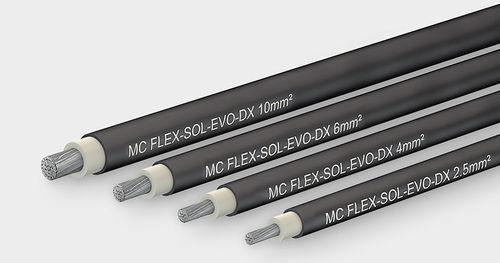

Power cable Flex-Sol-Evo DX seriesinsulatedfor photovoltaic applicationspolyolefin-insulated
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated
- Applications
- for photovoltaic applications
- Material of the insulation
- polyolefin-insulated
- Norms
- IEC
- Other characteristics
- halogen-free, UL
- Nominal voltage
1,500 V, 2,000 V
- Temperature
90 °C, 120 °C
(194 °F, 248 °F)Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description
Halogen free cross-linked polyolefin photovoltaic cable for the use within PV systems.
Halogen free, low smoke, flexible, single-core, cross-linked double layers photovoltaic cables, in particular for use at direct current (DC) side of photovoltaic systems. The cables are in compliance with IEC 62930 and EN 50618 as well as with UL4703.
