articulated robot / 6-axis / high-speed / collaborative
TX2-90XL

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

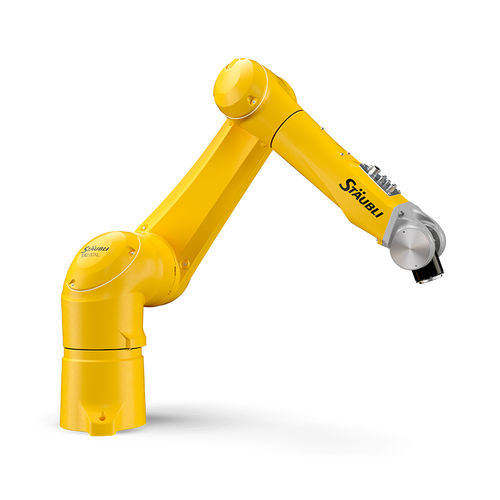

articulated robot / 6-axis / high-speed / collaborative articulated robot / 6-axis / high-speed / collaborative - TX2-90XL
{{requestButtons}}

Characteristics

  • Type:

    articulated

  • Number of axes:

    6-axis

  • Other characteristics:

    high-speed, collaborative, floor-mounted, ceiling-mount, high-precision

  • Payload:

    Max.: 9 kg (19.842 lb)

    4 kg (8.818 lb)

  • Reach:

    1,450 mm (57.09 in)

  • Repeatability:

    0.04 mm (0.00157 in)

Description

Our fast and precise TX2 industrial robots are the next generation of 6-axis robotic arms. This line of robots provides the ideal combination of speed, rigidity, size and precision. These robots have unique features that make them adaptable to all industries, including sensitive environments.
Optional SIL3-PLe safety functionalities allow high productivity while ensuring Man-Machine collaboration.

The TX2-90 range has a payload of up to 20 kg with a maximum reach of 1450 mm.

MAIN FEATURES AND BENEFITS
Smart design
* Hygienic encapsulated 6-axis arm enabled by hollow shaft drives, no external cables
* Compatible with all environments, from harsh and dirty to sterile
* Protection and additional installation options available
* IP65/67 for the entire arm with pressurization kit

Integration flexibility, modular and scalable
* 360°mounting possibility for flexible integration
* Large and efficient spherical working range
* Integrated electrical and pneumatic user circuit including Cat5e
* Sealed vertical cable option bringing additional and smart integration options

High performance kinematics
* Over 125 years of experience in fast moving technology
* Light and rigid structure
* Patented JCS smart gearbox specially designed for compact robots
* Compatible with NSF H1 food oil with no loss in performance
