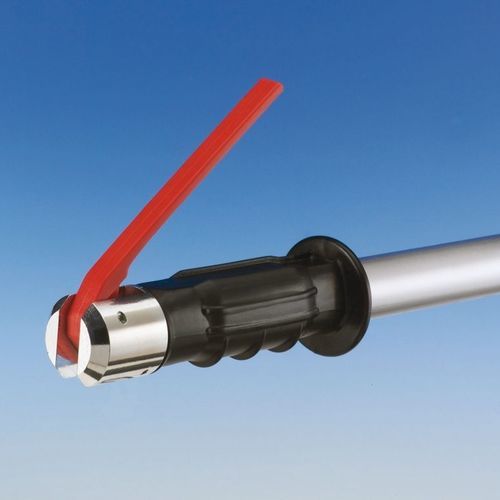

Handle control lever DS 01

SINGLE MECHANICAL LEVERS WITH DIRECT ACTING (inner tube assembly) AND ORDER FORM MODEL DS 01 Characteristics: Linear stroke: 16 mm Fastening type: inside a tube with screw Assembly: on tubes Holder material: aluminium or nylon Little lever colour: red Diameter of “D” nib to be inserted inside the tube, with aluminium holder: 18 mm - 20 mm - 21 mm - 21,7 mm - 22 mm - 22,7 mm - 25,8 mm - 28 mm Diameter of “D” nib to be inserted inside the tube, with nylon holder: 18 mm - 20 mm - 21 mm - 22 mm - 23 mm Lever typology: standard or long (see note) Knob for outer tube diameter: 22 mm - 25 mm - 26 mm - 27 mm - 28 mm
