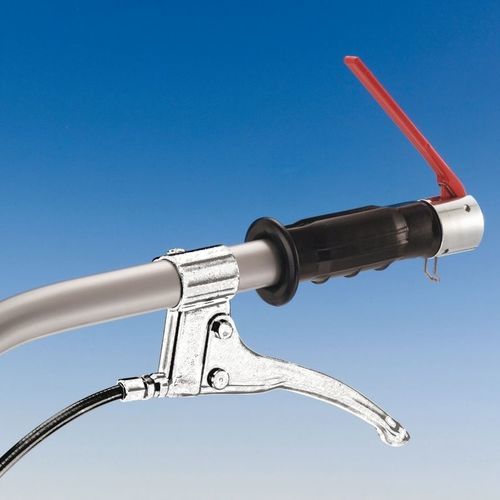

Handle control lever DS 01EL COMB

electronic

COMBINABLE ELECTRIC/MECHANICAL LEVERS UPPER ELECTRIC LEVERS (inner tube assembly) AND ORDER FORM MODEL DS 01EL Characteristics: Electric contact: Normally open microswitch: for internal combustion engine (see note) Normally closed microswitch: for electric engine (see note) Acting: direct (with standard lever or with long lever) (see note) or with locking hook (only with standard lever) Lever typology: standard or long Fastening: with screw Assembly: inside a tube Holder material: aluminium or nylon Little lever colour: red Diameter of “D” nib to be inserted inside the tube, with aluminium holder: 18 mm - 20 mm - 21 mm - 21,7 mm - 22 mm - 22,55 mm - 25,8 mm - 28 mm Diameter of “D” nib to be inserted inside the tube, with nylon holder: 18 mm - 20 mm - 21 mm - 22 mm - 23 mm Knob for outer tube diameter: 22 mm - 25 mm - 26 mm - 27 mm - 28 mm
