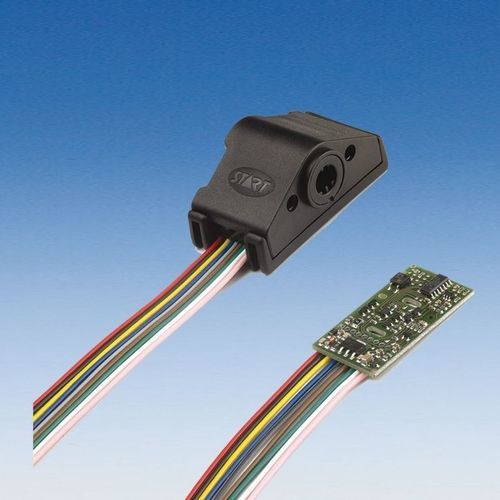

Angular position sensor STL1D
PWManalogIP67

angular position sensor
angular position sensor
angular position sensor
Add to favorites
Compare this product


Characteristics

Type
angular
Technology
PWM
Output signal
analog
Protection class
IP67
Measuring rate

3.8 kHz

Supply voltage

60 V

Ambient temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

ELECTRONIC SENSORS ANGULAR WITH HALL EFFECT Main characteristics: Mechanichal and electric regulations: FMVSS-124; 2004/108CE; EN 55011:2009 class B; EN 61000-4-(2:2009; 4:2004; 5:2006; 11:2009) Environmental characteristics: - 10 MlnCycles@60 cycles/min - IP67 with resin coating option or IP45 with coating option Power input and consumption:@20 mA typ Angle signal output: Analog or PWM or Canbus SAE J1939 Validation (IVS): free contacts - Amax 500 Ma - insulation 1500 Vac Con9gurable parameters: operative angle - angle signal IS and FS - threshold and polarity IVS - rotation direction Connections to the 9eld: 10 pole Delphi connector or free cables or speci9cation agreed with the customer
