Ambient air curtain 400

verticalindoorfor revolving doors

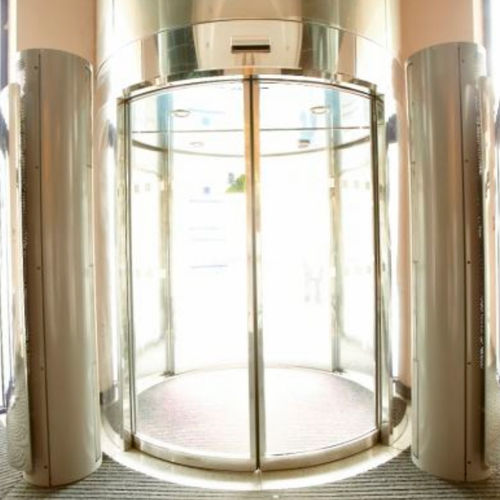

The Compact vertical design air curtain is characterized by a shape that imitates columns, and its 400mm diameter does not disallow them to be installed indoors. Its design and compact dimensions make the air curtain sui- table for interiors of high appearance requirements, such as shop units in shopping malls, boutiques, restaurants, banks, or hotel entrances or entrances to office buildings. The air curtain may be installed as desired by customer and door width either from one or both sides. Their area of deployment is various, from small carousel doors up to automatic entrance doors. The door curtain is intended for vertical installation only, a solid anchoring plate provides connection stability with electricity and central heating sunk invisibly under floor. For the air curtains installed in an already finished interior installations, we offer connection of the utilities from above. TECHNICAL SPECIFICATION version: vertical heating: hot water/electric/no heating fans: EC available lengths: 2.200 / 2.500 / 2.800 mm door width: up to 5,6m (double-sided installation) air power: 3,675 – 6,675 m3/h control: smart basic colour versions: RAL 9007
