Roller shot blasting machine 34 kg/h | 6W - 0.75 x 1.8
for metal6-wheel

roller shot blasting machine
roller shot blasting machine
Add to favorites
Compare this product


Characteristics

Type
roller
Applications
for metal
Other characteristics
6-wheel

Description

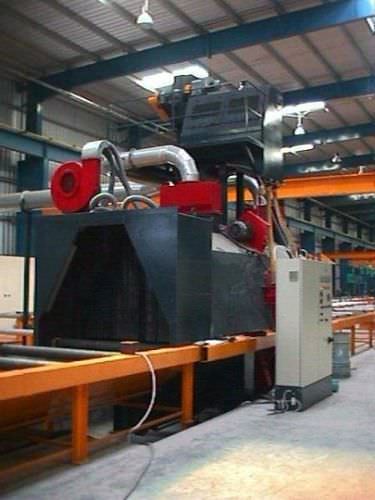

This six wheel shot blasting machine is designed for stand alone or flow line installation for blasting fabricated beams in the “I” position up to 1850 cleaning to the end plates. This machine is an ideal machine for the PEB or Bridge fabricator. As an option the bottom of the blast cabinet can be opened out to allow 2000 mm wide plate to be cleaned prior to fabrication Specification Maximum Beam Hieght : 1850mm Maximum Beam Width : 750 mm Maximum Length : 15000 mm Blast Wheels : 6 Blast Wheel Power : 18.5 kW Power Required : 155 kW Passline Height : 1250mm Conveyor Speed : 0.5 to 5 m / min Dust Collector Size : 10000 CFM Floor Space Required : 7m x 40m Maximum Height: 6.5m Initial Fill of Abrasive : 6000 kgs

VIDEO
