Roller conveyor shot blasting machine 14 kg/h | SPT

2-wheelfor tubes

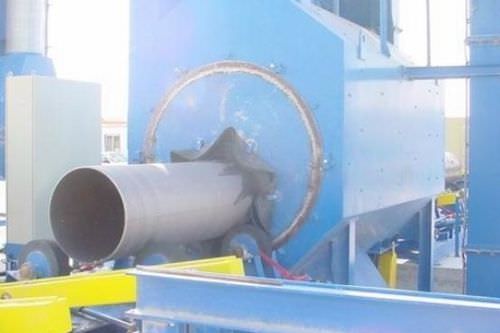

The Steelex Pipe Blasting Machines rotate the pipe as it passes through the blasting machine exposing all the outside diameter of the pipe to the blast stream. Machines are available for blasting pipe up to 3000 meters in diameter and the machine detailed here is for the most common range of pipe sizes from 6” (150mm) diameter to 48” (1220mm) diameter. The blast wheels are mounted under the pipe therefore maintaining the distance from the blast wheel to the surface of the pipe allowing a large range of pipe sizes to be efficiently cleaned with minimal adjustments. Rubber seals are provided on both the inlet and outlet sides of the machine that are changed to suit the pipe size to minimize the escape of abrasive from the machine. Specification Maximum Pipe Size : 48" Minimum Pipe Size : 6" Height of Pipe : 24” (Bottom) Blast Wheels : 2 Blast Wheel Power : 22 kW Power Required : 75 kW Conveyor Speed : 0.5 to 5 m/min Dust Collector Size : 5000 CFM Floor Space Required : 6m x 40m Maximum Height : 6.1m
