metal cutting machine / plasma / CNC / for thick sheet metal
LegendIII

Add to MyDirectIndustry favorites
Compare this product
metal cutting machine / plasma / CNC / for thick sheet metal metal cutting machine / plasma / CNC / for thick sheet metal - LegendIII
{{requestButtons}}

Characteristics

  • Material:

    for metal

  • Technology:

    plasma

  • Control type:

    CNC

  • Applications:

    for thick sheet metal

  • Other characteristics:

    high-speed, economical, high-power

  • X travel:

    1,500 mm (59 in)

  • Y travel:

    3,000 mm (118 in)

  • Cutting speed:

    Max.: 8,000 mm/min (5.249 in/s)

    Min.: 0 mm/min (0 in/s)

  • Laser power:

    1,000 W (1 hp)

Description

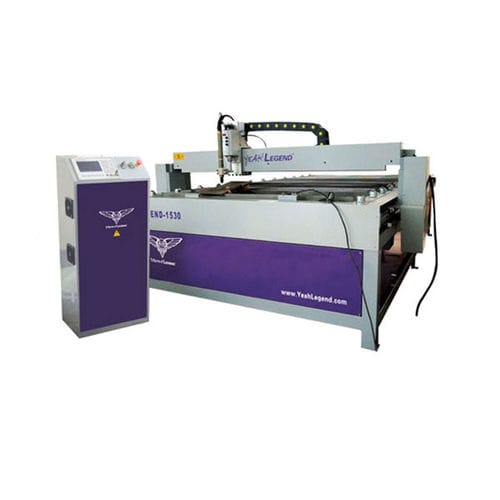

CNC Plasma Cutting Machine ,capable of cutting in the range of 2 mm to 25mm, is compatible with all major plasma brands. It is suitable with high current plasma power source like MAXPRO 200. The machine is provided with high power torch height control to take care of heavier plasma torch, advance anti collision system and double axis controller for easy and user friendly operating of the machine. It offers increased cutting speed and improved cutting ability i.e. ability to cut steel plate of even 25mm thickness. THC that is claimed to promote the cutting quality and spare part life needs an input voltage of 110/220 V and power frequency of 60/50 HZ.
