metal cutting machine metal cutting machine - B5
  • Metal cutting machine


  • Material:

    for metal

  • Technology:


  • Product handled:

    sheet metal, sheet

  • Control type:


  • Other characteristics:

    automatic, CE, ISO

  • X travel:

    Max.: 1,500 mm (59 in)

    Min.: 1,300 mm (51 in)

  • Y travel:

    Max.: 3,000 mm (118 in)

    Min.: 2,500 mm (98 in)

  • Cutting speed:

    Max.: 0.133 m/s (5.249 ft/s)

    Min.: 0 m/s (0 ft/s)

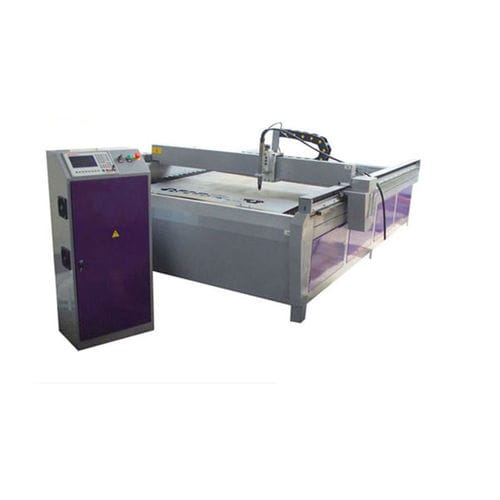

YEAH!LEGEND B5 Economical Table Plasma Cutting Machine
Product Positioning:
Economical table plasma cutting machine for medium-thick plate
Nothing looks special? But pragmatic!
1\Specially designed for the plate with thickness thinner than 22mm;
2\Light weight table structures, dual drives, stable and reliable;
3\Portable THC, 100A plasma, the most economical solution for cutting;
4\IBE/ Hypertherm Nest Master, free with the machine!
Brief description
LEGEND B5 is for small and medium processing industries which performs well to support thick plate cutting. It has a structural optimization by taking full account of the weight of 22mm steel the equipment can bear and destructive power of ARC the plasma cutting produced when machine is working. LEGEND B5 is equipped with a portable THC and special CNC system which enable LEGEND B5 to perform better and at the half price of traditional thick plate cutting machine. It provides the most competitive cutting solutions for medium-thick plate with 100A plasma power source.

Detailed explanation

Specially designed for the plate with thickness thinner than 22mm
Designed for the equipment with lower than 100A plasma power.Cutting arc of the plasma power with high power will damage the cutting table.

Reasonable selection, avoid performance surplus of some accessories
1\Portable THC(The third-generation THC system,900 sets or more have been sold)
2\Special CNC system(accepts G and M code. Compatible with the common cutting software such as IBE, Nest Master, FastCAM.)

4\Dual-drive step motors and high-precision guide;
5\High Cutting Speed,small kerf, precise cutting, less cutting residue.
