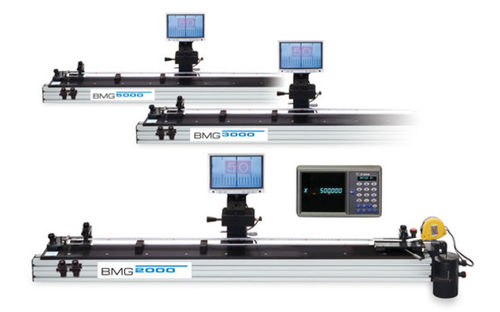

Length measuring system BMG x000 BV series

direct-contactstripfoil

The tapeline measuring device enables manual calibration and testing of tapelines, straight edges, yardsticks and all test objects with scales. As a manual variant for lengths to 5m. Manual measuring tape calibrator BMG 2000, 3000, 5000Manual measuring tape calibrator BMG 2000, 3000, 5000Manual measuring tape calibrator BMG 2000, 3000, 5000 • Standard measuring tape calibrator for manual calibration of measuring rulers, tapes and folding meter • Suitable for calibration labs and production measurements Technical data • Resolution 1 µm • Tensile load 5 N / 20 N / 50 N • Clamping range device-dependent • Error limit 2000 mm < 0,05 µm / 3000 mm < 0,07 µm / 5000 mm < 0,09 µm • Weight 2000 mm = 67 kg / 3000 mm = 105 kg / 5000 mm = 169 kg Benefits • Direct measurement comparison with highly accurate measuring system • Counter forces of 5, 20 and 50 N, depending on requirement • Measuring system directly underneath specimen • Camera and monitor simply taking a reading • Optional extensions for connection to all current test equipment monitoring software The FMSplus - extensive accessories inclusive BMG 2000, 3000, 5000: Base body, analysis electronics with USB and RS 232 interface, each 2x screw clamps spherical and flat, each 2 x quick clamps spherical and flat, scale support depending on length up to 5 units, hold-down clamps depending on length up to 5 units, wall or table mounting set with adjustment feet, connection cable, multiple plug socket, operating instructions
