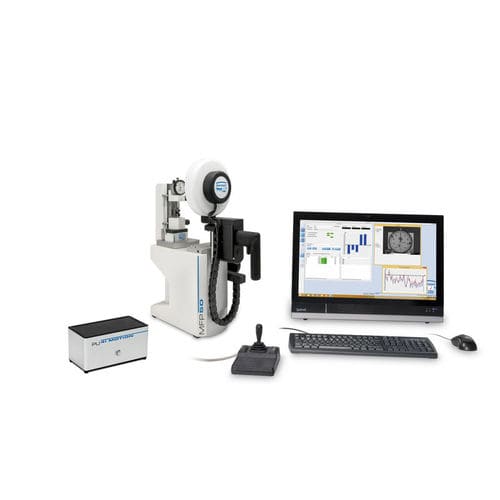

Gauge measurement system MFP 50 series

inductivefully-automaticfor small parts

Fully-automatic measuring dials and precision display testing device for analogue and digital measuring dials, as well as all types of measuring probes with a measuring range of up to 50 mm. The measuring results are even more precise with image processin Testing of: • Analogue & digital dial gauges • Precision indicators • Test indicator • Inductive probes • Incremental probes • 2-point internal measuring devices • Special measuring equipment such as edge sensors, electric probes, inverse and black scales System description The MFP 50 / 50 BV can test analogue and digital dial gauges quickly and economically even without an interface cable. The measuring results are processed, documented and transmitted automatically to different testing device management systems thanks to the innovative Dialtest 7 software. The following parameters can be defined: • Deviations in the overall measuring range, partial measuring range and for repeatability (range) tests in both directions (in/out) • Testing of lever gauge measuring devices in both directions • Measuring force testing (optional) • Individual configuration of any measuring positions and parameter calculations • Supports parameter calculations according to current national and international standards • Analysis in consideration of measuring accuraciesbes, inverse and black scales
