Multi-axis positioning system 782300:150.26

XYZ2/3-axislinear

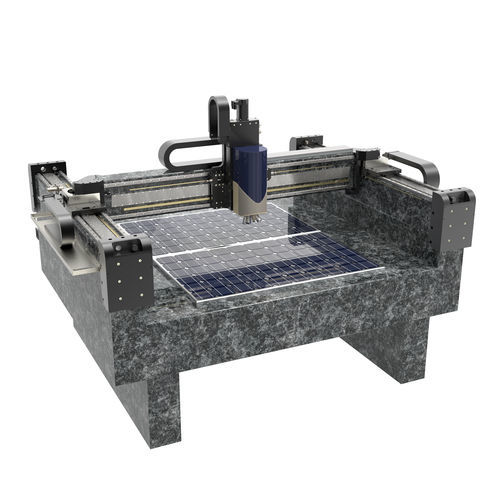

XYZ Gantry for highly dynamic applications Customizable • Ideal for high precision and dynamic applications • Very large travel range of 1300 x 800 mm • High accelerations and speeds combined with high precision This gantry enables highly dynamic movements across an area of 1300 x 800 mm. The customized processing head or sensor on Z-axis moves quickly, smoothly over the carriers on the granite. The profiled rail guides are mounted directly on the granite to provide optimum running characteristics for tremendously repeatable sub-micron results. Specifications - Stroke: 800 x 1300 x 200 mm - Repeatability: 1 - 0.7 µm - Speed: 500 - 1000 mm (XY) / 50 - 100 (Z) - Max. Load: 150 N (Z) - Drive: Linear Motor, Profile Rail (XY) / Ball Screw, AC Servo (Z) - Feedback: linear scale - Motion Controller: FMC series, ACS, PLC integration Customized options: - Process adaptation, sample holder, head / sensor - Versions for clean room ISO 14644-1 (up to class 1 on request) - Rack, vibration isolation, enclosure, safety concept - Extension of degrees of freedom for XYZ-Rx-Ry-Rz motions - Individual solution finding with 3D design for the positioning task
