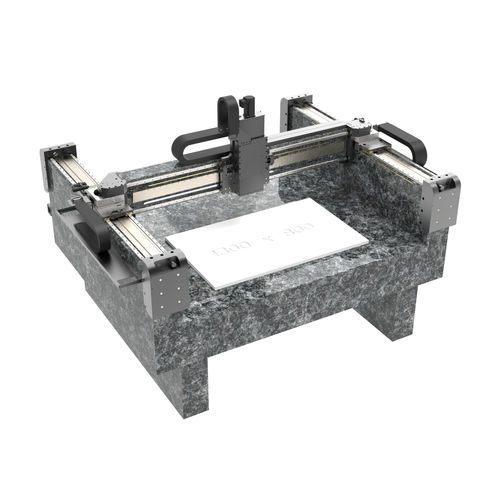

XYZ positioning system 782300:150.26

linearlinear motor-drivenservo-driven

XYZ gantry for highly dynamic laser applications Customizable • Ideal for high-precision and dynamic applications e.g. laser joining, laser micro applications in medical technology • Very large travel ranges of 800 x 1300 x 200 mm • Reliable and consistent quality due to high-precision positioning with a repeatability of up to 0.8 µm • Integrated linear motors guarantee high accelerations and speeds with simultaneous high precision This gantry allows highly dynamic motions over an area of 1300 x 800 mm. The custom processing head or sensor on Z-axis moves quickly, continuously over the carriers on the granite. The profiled rail guides are mounted directly on the granite to provide optimum running characteristics for enormously repeatable sub-micron results. The gantry design makes integration into cycle lines and lining up multiple such portals easily possible. Specifications: - Standard System: LA250 - (XY) / PLT165 (Z) - Stroke: 800 x 1300 x 200 mm - Repeatability: 0.7 – ±1 µm - Speed: 500 - 1000 mm (XY) / 50 - 100 mm (Z) - Max. load: 150 N (Z) - Drive: linear motor (iron core), Profile Rail (XY) | ball screw, AC-Servo (Z) - Feedback: linear scale - Motion Controller: FMC-250/280, FMC-400/450, ACS, PLC integration Customized options: - Stackable system design - Adaptation of travels, length combination, cabling and motion control - Base plate made of granite or aluminum - Special configuration for biotechnology, medical technology, pharmaceuticals, semiconductors - Versions for clean room ISO 14644-1 (up to class 1 on request) - Immediate use with pre-configured motion controller incl. exemplary software
