UV-vis spectrometer DSR

NIRprocessrugged

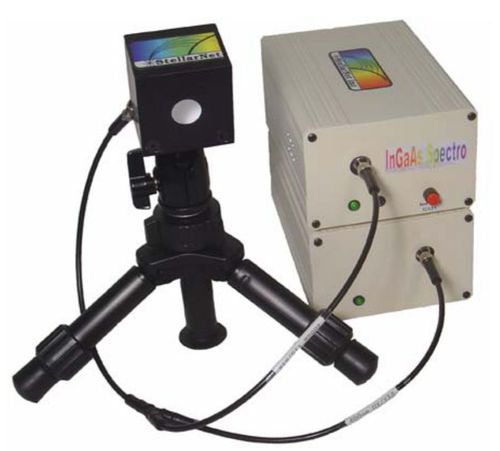

Dual Detector Super Range (DSR) for measurements from 200-2,300nm Two instruments work as one updating spectral graph UV-VIS detector array plus NIR-InGaAs arrays Options for up to 8 channels High Speed USB-2 interfaces StellarNet Dual-Detector Super Range (DSR) spectrometer systems combine two instruments to cover the ultra violet, visible and near infrared portions of the electromagnetic spectrum. The two instruments work as one creating a unified spectral graph over the entire wavelength region, 200-2300nm. The two instruments employ both a UV-VIS detector array and NIR-InGaAs array in order to cover the entire range. 2048 element UV-VIS detector with the option of 512 or 1024 elements in the NIR. Various models allow for ranges from 200-1700, 280-1700, or 200-2300nm depending on the measurement specifications required. Like always StellarNet spectrometers are ruggedized for field or lab process measurements. A Miniature USB-Hub provides instrument PC interface. The Dual-DSR system has many applications for spectroradiometry, food and drug QA/QC, and chemical process measurements due to its ability to probe the near infrared while simultaneously measuring sample UV and color spectrum. Spectroradiometric Calibrations Optional IRRAD-CAL turns system into a SpectroRadiometer covering Variety of accessories – reflectance probe/stand, transmission fixtures, and cuvettes for absorbance.
