PTFE pipe expansion joint AI-2
roundflangefor the chemical industry

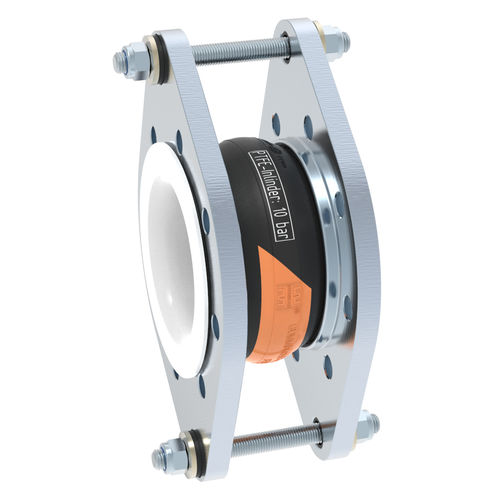

PTFE pipe expansion joint - AI-2 - STENFLEX Rudolf Stender GmbH - round / flange / for the chemical industry
PTFE pipe expansion joint - AI-2 - STENFLEX Rudolf Stender GmbH - round / flange / for the chemical industry
Add to favorites
Compare this product

Characteristics

Material
PTFE
Configuration
round
Installation system
flange
Applications
for the chemical industry, for the food industry
Nominal diameter

Min.: 40 mm
(1.57 in)

Max.: 500 mm
(19.69 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 100 °C
(212 °F)

Length

Min.: 131 mm
(5.16 in)

Max.: 262 mm
(10.31 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

Lateral expansion joint consisting of a rubber bellow with seamless PTFE lining and rotable flanges, also with tie rods (external restraints) to absorb reaction force from internal pressure. Applications: • for conveying aggressive media • very good chemical resistance • resistant to most acids and lyes • for compensating lateral movement • for muffling vibration and noiselications • for reducing thermal and mechanical tension • to compensate for installation inaccuracies
