Rubber pipe expansion joint AR-2roundflangefor pipes
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for pipes, for pumps, for compressors
- Nominal diameter
Max.: 600 mm
(23.62 in)Min.: 20 mm
(0.79 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 0 °C
(32 °F)- Length
Max.: 250 mm
(9.84 in)Min.: 100 mm
(3.94 in)- Pressure
Max.: 25 bar
(362.6 psi)Min.: 0 bar
(0 psi)
Description

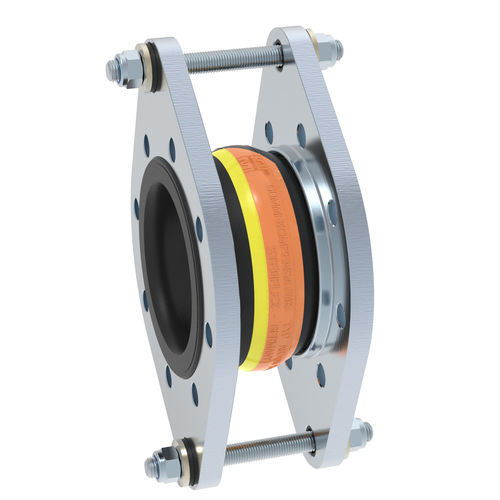

Lateral expansion joint consisting of a rubber bellows with rotable flanges and tie rods (external restraints) to absorb reaction force from internal pressure.
High-tensile synthetic fibre reinforcement.
Applications:
for reducing thermal and mechanical tension in pipes and their system components, e.g.
for muffling vibration and noise
• at appliances
• in cooling water and lube oil pipes
for compensating lateral movement
to compensate for installation inaccuracies
in sprinkler systems
