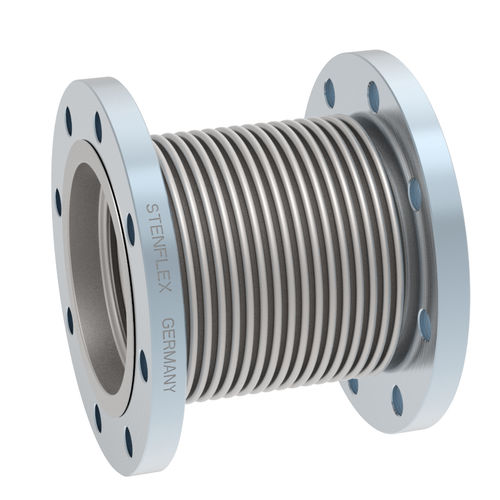

Steel pipe expansion joint SF-10roundflangeaxial
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Configuration
- round
- Installation system
- flange
- Expansion axis
- axial
- Applications
- for water, for pump, for heating, for gas, for motors, exhaust
- Nominal diameter
Max.: 2,800 mm
(110.24 in)Min.: 15 mm
(0.59 in)- Operating temperature
Max.: 550 °C
(1,022 °F)Min.: -196 °C
(-320.8 °F)- Length
Max.: 320 mm
(12.6 in)Min.: 105 mm
(4.13 in)- Pressure
2.5 bar, 6 bar, 10 bar, 16 bar
(36.3 psi, 87 psi, 145 psi, 232.1 psi)
Description
Vacuum-proof, short-length axial expansion joint, consisting of a stainless steel bellows and rotable flanges.
Applications:
• for compensating axial movement
• for reducing tension, damping noise and oscillation in pipes and their system components, e.g.
• for installation in
• industrial applications
• gas and water supply
• exhaust systems
• drinking water systems
• to compensate for installation inaccuracies
Catalogs
FLEXIBLE PIPE CONNECTIONS
224 Pages
