Holding solenoid

compactpowerelectromagnetic

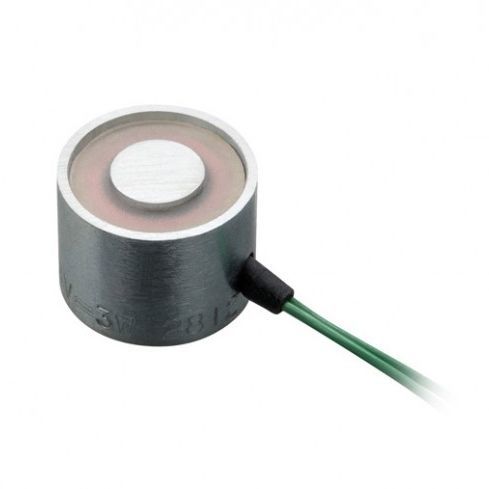

Electromagnetic holding magnet High holding force in a compact design, our electromagnets are available in a range of fixings, sizes and forces. Key features Available in a range of sizes Ø15mm to Ø180mm Axial forces ranging from 40 to 40,000N Made in the UK Compact design High quality, cost effective package Armature keeper plates available Dual-fixing Special voltages/ forces/ mountings available on request Product description Our type 58 electromagnetic holding magnets offer a reliable solution for industrial applications where significant holding force and low power consumption is required. Available in standard sizes from Ø15 to Ø180mm in diameter, with a force of 90 to 15,000N and special designs in the range up to 280mm and 40,000N on request. Electromagnetic holding magnets consist of a steel magnet housing and a DC-excited internal coil which when power is applied will securely hold ferromagnetic parts. As they are ‘energised-to-hold’, electromagnets become magnetised when electric current is applied, immediately releasing hold when the electric current is removed and the coil is de-energised.
