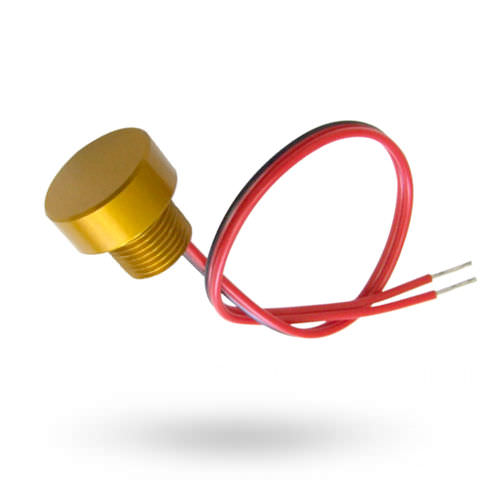

Piezoelectric switch 07225252
single-polevandal-proofIP69K

piezoelectric switch
piezoelectric switch
Add to favorites
Compare this product


Characteristics

Type
piezoelectric
Number of poles
single-pole
Protection level
vandal-proof, IP69K, IP68, weather-proof
Other characteristics
panel-mount, non-illuminated, aluminum, momentary
Primary current

1 A

Voltage

24 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

12MM NON ILLUMINATED ALUMINUM , GOLD ANODIZED BPS - Basic Piezo Switch One piece solid metal switch based on the piezoelectric principle which is the ability of some materials (crystals and certain ceramics), to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10M operating cycles * No power consumption * Completely sealed IP69K * Weather proof * Easy installation Vandal proof No moving parts >10M operating cycles No power consumption Completely sealed IP69K Weather proof Easy installation Specifications Type: Piezo Momentary Thread Cut out: 12 mm IP rating: IP68/IP69K Material: Aluminum Type of head: Elevated flat head Ring Illumination: non illuminated Housing Colour: Gold Anodized Cable: 20cm open leads Power supply: N/A Switching voltage: 24V Switching current: 1A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40°C to +85C° Vibration resistance: 5-500Hz/9.4m Shock resistance: 75g
